Wafer Cleaning System Upgrade: Advanced Semiconductor Process Improvement & Yield Optimization
Discover how KOSEN SEMI delivered tailored hardware retrofits and control software upgrades for automated wet benches and advanced wafer cleaning systems—eliminating wafer contamination, boosting throughput, and maximizing fab equipment ROI.
Pre-Upgrade Challenges & Wafer Cleaning Bottleneck Analysis
As semiconductor node scaling advances toward smaller geometries, aging wet processing equipment struggles to meet demanding micro-defect density targets. Legacy wafer cleaning systems and benches in mature 200mm and 300mm fabrication plants often become severe operational bottlenecks. Particle entrapment, chemical bath instability, and uncalibrated flow dynamics directly drag down die yield across high-value production lots.
To break these cost and process constraints, the KOSEN SEMI team leverages deep Engineering Capability to perform comprehensive on-site diagnostic audits inside commercial wafer fabs. By systematically analyzing structural fluid mechanics, chemical dosing drift, and legacy control software, our team establishes detailed baseline metrics needed for targeted wafer contamination control and high-yield wet bench retrofits.
Particle Contamination and Wafer Edge Yield Loss
Particle contamination in the 200 nm range, with optimized process capability down to 100 nm remains a primary driver of killer defects in advanced wafer processing, particularly where high-precision Single Wafer Cleaning Systems are required. Legacy wet cleaning benches lack optimized fluid dynamics and modern megasonic cavitation control, allowing microscopic debris and slurry particles to re-deposit onto critical wafer edge exclusion zones.
- Stagnant Flow Boundaries: Poor recirculation loops create localized fluid dead zones along carrier edges, trapping unwanted 200 nm-class particles, with optimized control down to 100 nm during chemical exposure.
- Peripheral Die Degradation: Non-uniform particle removal causes localized die losses exceeding four percent across outer wafer peripheries.
- Rinse Carryover Deficiencies: Outdated quick-dump rinse mechanisms fail to completely flush particulate contaminants before wafer surface drying.
Achieving repeatable particle reduction requires active hydrodynamic flow modeling and precise acoustic power management to maximize usable silicon area.
Legacy Chemical Delivery Inaccuracy and Reagent Waste
Aging chemical distribution manifolds suffer from volumetric dosing drift due to mechanical wear in legacy pneumatic pumps and uncalibrated flow meters. Fluctuating ratios of standard cleaning chemistry (SC1, SC2, and hydrofluoric acid) impair process repeatability and inflate raw chemical expenses.
- Chemical Over-Dosing: Operators routinely over-dispense expensive ultra-pure reagents to compensate for metering instability and flow fluctuations.
- Premature Bath Dumps: Concentration drift shortens active chemical bath life, causing frequent bath replacements and tool downtime.
- Etch Rate Instability: Chemical concentration spikes induce unwanted variations in oxide removal rate across the wafer surface.
Executing a targeted chemical delivery upgrade corrects concentration fluctuations by introducing closed-loop flow sensors and adaptive auto-spiking algorithms.
Obsolete Control Hardware and Lack of Process Traceability
Legacy semiconductor wet cleaning tools rely on end-of-life PLC hardware and monolithic software architectures. These isolated control systems lack modern communication protocols, preventing real-time data streaming to Fab Execution Systems (MES) or central Statistical Process Control (SPC) platforms.
- Missing SECS/GEM Integration: Manual event logging delays yield excursion investigations and prevents automated fab tracking.
- Recipe Drift & Human Error: Outdated operator interfaces lack granular permissions, increasing the risk of unmonitored recipe modifications.
- High Mean Time to Repair (MTTR): Absence of predictive diagnostic sensors complicates root-cause analysis during unexpected hardware faults.
Upgrading legacy hardware to modern automated wet bench retrofitting architectures restores complete process transparency and aligns tools with smart manufacturing standards.

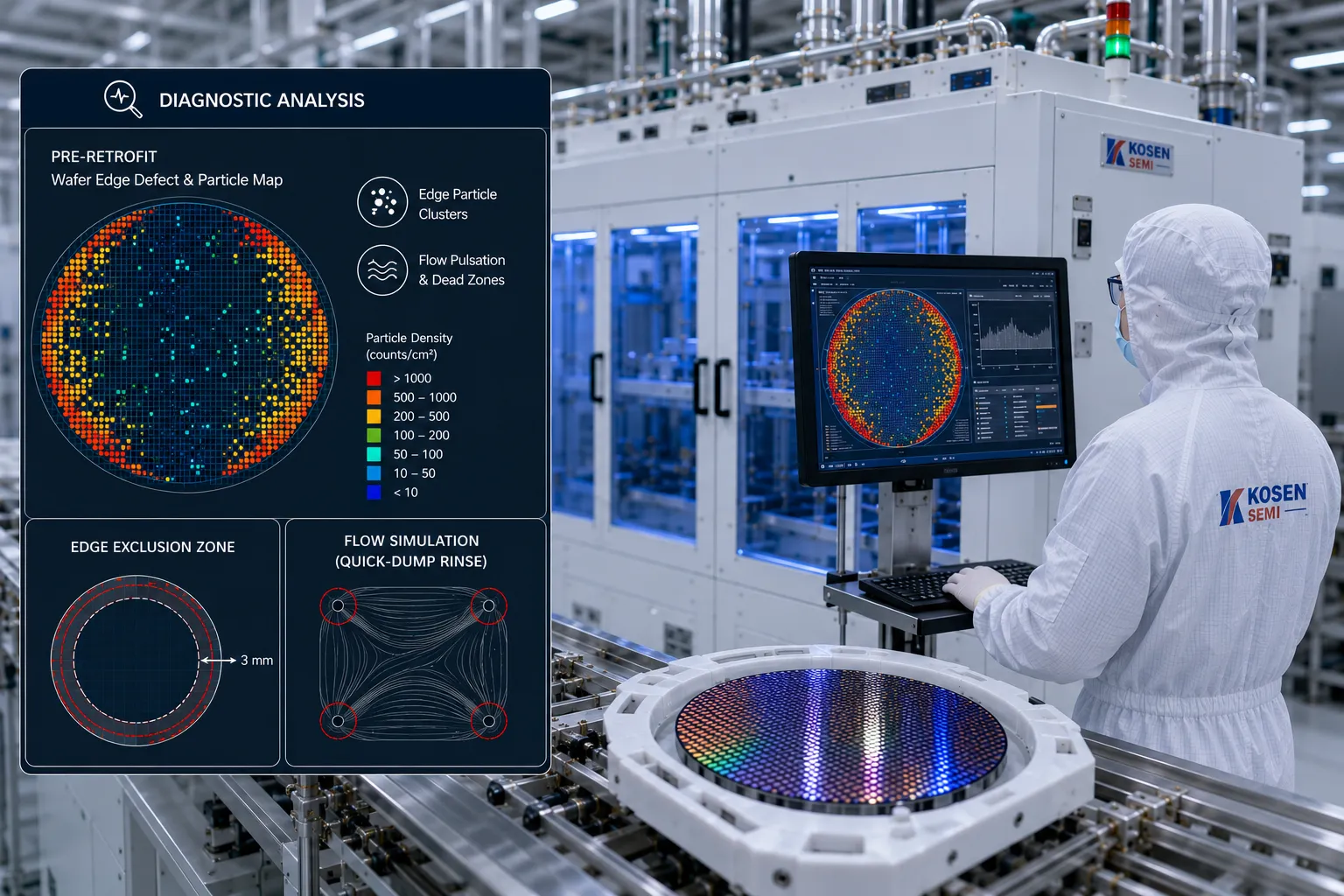

Pre-Retrofit Wafer Edge Defect & Particle Map
Fab Diagnostics Audit: Surface inspection scans reveal critical particle clusters concentrated at wafer edge exclusion zones. Pump flow pulsation and corner dead zones prevent effective particle reduction during quick-dump rinse cycles.
On-Site Engineering Diagnostics by KOSEN SEMI
KOSEN SEMI deploys specialized field engineers directly into customer cleanroom facilities to perform comprehensive diagnostic evaluations. By evaluating fluid dynamics, dosing stability, and control logic, our engineers isolate operational bottlenecks on aging wet processing equipment.
Customized Upgrade Solutions for Automated Wet Bench Retrofitting
KOSEN SEMI delivers high-precision wafer cleaning systems upgrade solutions that pair modular hardware retrofits with intelligent software automation. Drawing on years of semiconductor equipment R&D and backed by our robust Engineering Capability, our engineering team restores legacy tools to advanced-node performance standards—maximizing particle reduction, stabilizing chemical delivery, and optimizing yield enhancement without requiring full tool replacement.
Every automated wet bench retrofitting project starts with a detailed engineering assessment of existing tank geometry, fluidic lines, and control architecture. We engineer targeted retrofits for chemical delivery upgrades, Megasonic agitation, Ultra-Pure Water (UPW) conservation, and SECS/GEM fab connectivity. By combining pre-fabricated sub-assemblies with offline qualification, KOSEN SEMI delivers measurable tool downtime reduction during fab integration while driving rapid ROI.
High-Voltage Megasonic Generator Upgrade
Legacy ultrasonic transducers are upgraded to next-generation Megasonic generators featuring real-time frequency sweep and multi-channel acoustic control. This enhancement delivers uniform energy distribution across wafer surfaces, addressing particle removal at the standard 200 nm level and, under optimized conditions, down to 100 nm and driving measurable wafer contamination control.
- Precision frequency tuning optimized for delicate patterned wafer cleaning
- Full compatibility with SC1, SC2, DHF, and SPM process chemistries
- Drop-in transducer retrofit engineered for existing quartz and PFA tanks
Ultra-Pure Water Flow Channel Reconstruction
Aging UPW distribution manifolds are re-engineered using low-dead-volume fluidic channels and high-purity PFA fittings. This chemical delivery upgrade optimizes rinse dynamics, reducing UPW consumption per wafer batch by up to 20% while maintaining the rigorous resistivity standards necessary for advanced semiconductor process improvement.
- Low-dead-volume manifold design prevents bacterial entrapment
- Integrated inline flow monitoring and quick-dump rinse (QDR) valves
- Customized fluidic architecture for 200 mm and 300 mm wet benches
Anti-Corrosion Pump and Valve Replacement
Worn chemical circulation pumps and seals are replaced with pure PTFE/PFA diaphragm pumps and zero-dead-leg pneumatic valves. Upgrading chemical handling components stops micro-particle shedding from degraded elastomer seals, driving particle reduction and continuous throughput optimization across high-volume lines.
- Virgin PTFE and PFA wetted surfaces for aggressive chemical service
- Integrated leak detection sensors with auto-shutoff safety interlocks
- Direct fitments designed for standard OEM wet bench installation

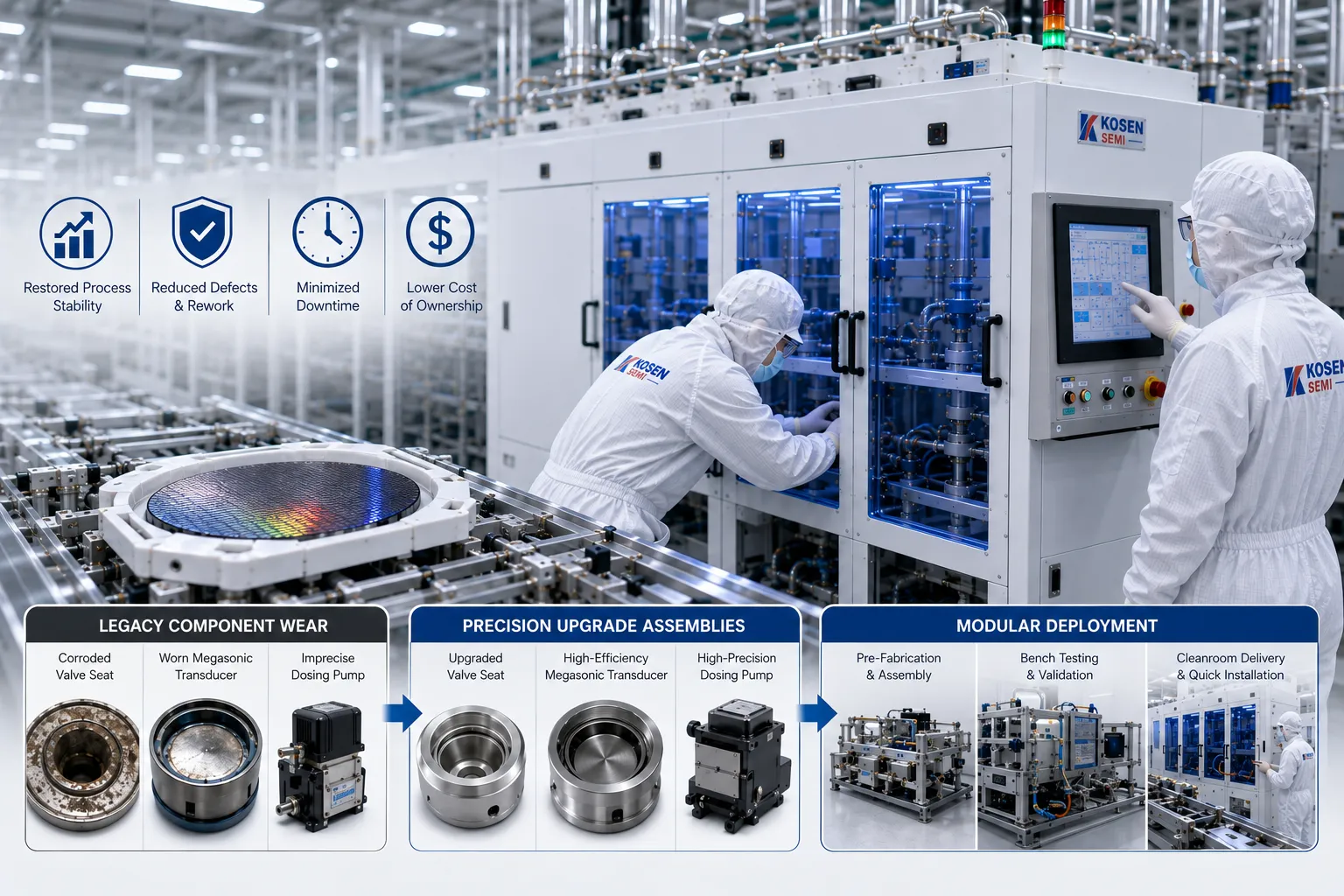

Direct ROI Through Targeted Hardware Modernization
Physical component wear in legacy wet cleaning equipment is a primary root cause of yield degradation and unexpected defect spikes. Corroded valve seats, worn megasonic transducers, and imprecise dosing pumps allow micro-particles to re-deposit on wafer surfaces. KOSEN SEMI's automated wet bench retrofitting program isolates these core points of failure, deploying precision-engineered replacement assemblies that re-establish cleanroom-grade process repeatability.
All hardware upgrade sub-assemblies are pre-fabricated and bench-tested prior to cleanroom delivery. This modular deployment methodology ensures max tool downtime reduction, completing complex hardware retrofits within planned maintenance windows to protect fab production schedules.
Pre- vs. Post-Upgrade Metrics: Quantifiable ROI & Yield Enhancement
At KOSEN SEMI, we back every project with verifiable empirical data. Backed by our advanced Engineering Capability, our engineered wafer cleaning systems retrofits deliver measurable yield enhancement, reduced chemical consumption, and continuous throughput optimization across your fab operations.
Yield Enhancement
Measurable gain in overall wafer output quality by eliminating defect-inducing contamination sites.
Particle Drop (≥200 nm Standard / 100 nm Optimized)
Dramatic reduction in surface micro-particles for pristine, high-purity wafer surfaces.
Chemical Consumption
Optimized fluidics and precision dosing cut chemical waste and operating expenditures.
MTBF Increase
Substantial gain in Mean Time Between Failures, eliminating costly unscheduled tool stops.
Empirical Process Benchmarks
Our targeted wafer cleaning retrofits optimize key wet bench operating parameters, driving seamless throughput optimization and maximizing equipment profitability.
| Process Parameter | Pre-Upgrade Baseline | Post-Upgrade Performance | Measured Impact |
|---|---|---|---|
| Cleaning Uniformity | 92.1% surface coverage | 99.4% uniform coverage | +7.3% Consistency |
| Drying Efficiency | 180 sec cycle time | 110 sec cycle time | 38.8% Time Reduced |
| Unscheduled Failure Rate | 2.4% tool halts | 0.5% tool halts | 79.2% Halt Reduction |
| Throughput Optimization | 115 wafers / hour | 150 wafers / hour | +30.4% Output |
Ready to Achieve Similar Yield Enhancements in Your Fab?
Partner with KOSEN SEMI to upgrade legacy wet benches with precision automation, proven particle control, and rapid ROI.
Standardized Semiconductor Equipment Upgrade Process for Maximum Tool Downtime Reduction
Unplanned tool downtime and prolonged retrofitting cycles directly jeopardize wafer fab profitability and overall manufacturing throughput. The KOSEN SEMI technical engineering team relies on advanced Engineering Capability to execute a disciplined, four-stage semiconductor equipment upgrade process designed to modernize aging wet benches while safeguarding ongoing cleanroom operations. Through extensive off-site modular pre-assembly, pre-validation testing, and ISO-compliant cleanroom protocols, we deliver aggressive tool downtime reduction, ensuring rapid tool integration and accelerated process qualification.
Comprehensive physical audits, 3D laser mapping, and fluidic diagnostics are conducted live without interrupting active wafer processing.
Off-site modular assembly, pre-wiring, and dry testing compress on-site physical swap-outs into brief scheduled maintenance windows.
Strict containment protocols and contamination barriers prevent micro-particle ingress and chemical exposure during retrofits.
Accelerated Process Qualification (PQ) protocols support prompt qualification against agreed particle limits and yield targets.
Four-Step Semiconductor Equipment Upgrade Process
Systematic execution from pre-retrofit diagnostic audits to complete process qualification
On-Site Pre-Diagnostics & Scheme Design
Senior field engineers perform non-invasive site audits, 3D spatial scanning, and fluidic mapping on active wet processing equipment to eliminate integration risks.
- 3D laser scanning for precise spatial modeling and enclosure fitting
- Comprehensive chemical compatibility, valve, and piping layout audits
- Zero impact on active wafer processing and fab production schedules
Modular Pre-Fabrication & Off-Site Testing
Critical wet bench retrofitting components, chemical delivery manifolds, and PLC controllers are pre-built and exhaustively tested off-site to drive maximum tool downtime reduction.
- Off-site bench testing of high-frequency megasonic generators and transducers
- Pre-configured SCADA / PLC programming with SECS/GEM host simulation
- Hydrostatic pressure, flow loop, and chemical leak integrity verification
On-Site Retrofit & Process Qualification
Factory-certified engineers execute cleanroom-compliant hardware swap-outs and software integration during planned PM windows, followed by rapid process calibration.
- ISO Cleanroom-certified physical installation and wiring hookups
- Ultra-pure water (UPW) line flushing and chemical dosing calibration
- Inline particle measurement and rapid Process Qualification (PQ) sign-off
Fab Staff Training & Long-Term O&M Support
We empower your process and maintenance engineering teams through tailored hands-on training, updated schematics, and continuous operational support to sustain high yield.
- In-depth operator, maintenance, and process engineering training modules
- Complete technical documentation package and revised electrical schematics
- Dedicated 24/7 technical hotline and scheduled preventive health checks
Mitigating Operational Risk with Cleanroom-Grade Semiconductor Equipment Upgrades
Executing a complex semiconductor equipment upgrade process requires strict alignment with semiconductor fab operational guidelines and stringent cleanroom protocols. Legacy wet bench retrofits often suffer from unexpected downtime, chemical interface mismatches, or protracted particle qualification cycles. KOSEN SEMI mitigates these risks through pre-engineered modular sub-assemblies, rigorous off-site pre-qualification, and disciplined field execution.
Our technical service team strictly follows semiconductor cleanroom specifications to ensure that the retrofit process has minimal impact on wafer cleaning systems and broader wafer fab production. By transferring over 80% of wiring assembly, software recipe configuration, and fluidic testing to our off-site facility, substantial tool downtime reduction is achieved. For high-density processing demands, we also support Single Wafer Cleaning Systems to modernize critical wet processing tools, boost wafer yields, and protect overall capital efficiency without interrupting active manufacturing schedules.
Quick-connect fluid manifolds, pre-loomed cabling, and modular chemical blocks drastically reduce on-site assembly time.
SECS/GEM interfaces, SCADA controllers, and recipe managers are pre-simulated off-site to eliminate host communication faults.
KOSEN SEMI engineers maintaining ISO Class 5–7 cleanliness standards during wet bench retrofits.
Wafer Cleaning Upgrade FAQs and Expert Consultation Guide
Transitioning aging wet process tools into high-yielding, automated production systems requires precise technical alignment. KOSEN SEMI provides expert semiconductor equipment consultation, turnkey retrofitting, and robust post-deployment support to maximize tool longevity, process capability, and overall yield. Learn more about our company's core focus and expertise.
KOSEN SEMI provides customized engineering solutions for a broad range of legacy automated, semi-automated, and manual wet benches. Compatible platforms include major semiconductor OEM platforms, including advanced wafer-cleaning-systems such as SCREEN (DNS), TEL (Tokyo Electron), Akrion, Kokusai, and Singulus, as well as proprietary fab-built wet processing stations.
Our engineering team conducts full-system evaluations to modernize critical subsystems regardless of original manufacturing date:
- Chemical Delivery Upgrades: Replacement of legacy pumps, valves, and flowmeters with ultra-pure PFA manifolds, precision dosing controllers, and real-time fluid monitoring.
- Megasonic Generator Retrofits: Upgrades to multi-frequency high-efficiency megasonic transducers for optimized particle removal at 200 nm, with process capability down to 100 nm and defect reduction.
- Automation & SECS/GEM: Retrofitting legacy PLCs to advanced industrial PC controllers running SECS/GEM GEM300 compliance protocols for smart fab connectivity. We also offer specialized solutions for Single Wafer Cleaning Systems to enhance single-wafer processing efficiency.
We execute a strict off-site pre-fabrication and simulation model to ensure tool downtime reduction. Typical active fab intervention requires only 3 to 7 calendar days, minimizing disruption to ongoing wafer fab production schedules.
Standard Implementation Stages:
- Phase 1 (Off-site Engineering): 3D laser scanning, CAD design, modular wiring assembly, and dry-run software validation (4–6 weeks).
- Phase 2 (On-site Installation): De-installation of legacy components, hardware assembly, cabling, fluidic hookup, and safety interlock validation (3–5 days).
- Phase 3 (Process Qualification): Chemical recipe calibration, bath temperature stabilization, particle defect testing, and final Process Qualification (PQ) sign-off (2–3 days).
All retrofitted components, custom software modules, and structural enhancements are backed by a standard 12-month comprehensive warranty. KOSEN SEMI offers extended service level agreements (SLAs) tailored to commercial fab operational requirements.
- Rapid Field Support: On-site cleanroom field service engineers dispatched within 24 hours for emergency troubleshooting and component replacement.
- Spare Parts Availability: Guaranteed strategic inventory of critical PFA pumps, valves, flow sensors, and PCB boards with rapid dispatch.
- Remote Diagnostics: Secure SCADA network diagnostic support for rapid software troubleshooting, recipe tuning, and log analysis.
- Engineer Training: Comprehensive on-site operational, maintenance, and safety training for fab technicians upon project completion.
Retrofitting existing wet bench equipment delivers up to 70% capital expenditure savings compared to purchasing brand-new semiconductor processing tools. Fabs achieve full wafer cleaning upgrade ROI within 6 to 12 months through direct operational improvements:
A 3.5% yield increase by eliminating edge defects and reducing 200 nm particle contamination, with optimized control down to 100 nm.
20% lower reagent usage via high-precision inline mixing, chemical recirculation, and automated dosing.
Up to 30% reduction in Ultra-Pure Water consumption with optimized rinse bath flow and quick-dump design.
60% increase in Mean Time Between Failures, drastically cutting unscheduled tool downtime.
Verified Quality & Cleanroom Compliance
Every wet bench modernization project executed by KOSEN SEMI strictly adheres to ISO Class 5–7 cleanroom standards, SEMI S2/S8 safety guidelines, and CE directives.
Ready to Elevate Your Wafer Cleaning Yield & ROI?
Contact our semiconductor equipment consultation team today. Receive a tailored feasibility assessment report, ROI calculation, and custom engineering roadmap for your factory's wet cleaning tools.
