Chemical Exhaust Scrubber & Semiconductor Gas Abatement Systems
Industrial-grade chemical exhaust scrubbers engineered for advanced wafer fabrication lines. Delivering high-efficiency neutralization for acid, alkaline, and toxic gases across high-volume semiconductor manufacturing facilities.
Destruction & Removal Efficiency
Maximum DRE performance across acid, alkaline, and toxic gas streams.
System Operational Uptime
Continuous 24/7 reliability designed for high-volume semiconductor fabs.
SEMI S2 / S8 Compliance
Fully certified against stringent global safety and ergonomic standards.
Global Fab Units Deployed
Trusted worldwide by leading semiconductor foundries and IDMs.
Core Chemical Exhaust Solutions for Advanced Fabs
KOSEN SEMI manufactures multi-tier hazardous gas treatment systems and engineered exhaust scrubbing solution architectures designed specifically for high-volume semiconductor wafer fabrication. From high-concentration acidic vapors and toxic hydride emissions to volatile organic compounds (VOCs), our specialized wet and hybrid abatement platforms deliver strict SEMI S2 compliance, maximum operational uptime, and sub-ppm emission control across all sub-fab operations. Explore our full range of semiconductor equipment on our products page.

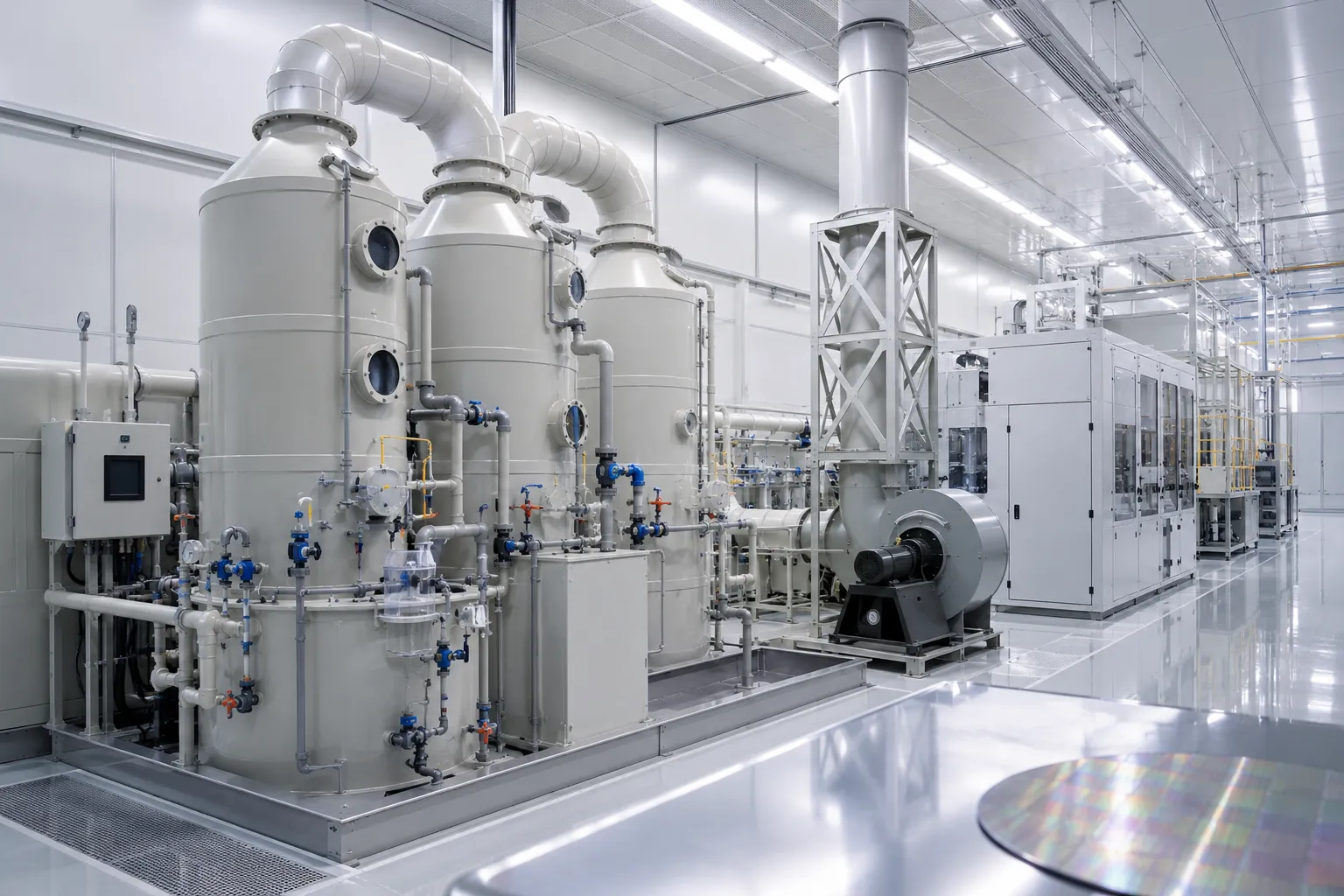

Acid and Alkaline Gas Scrubbing Systems
Engineered for continuous neutralization of aggressive, corrosive vapor streams generated by wet benches and chemical etching stations. Utilizes multi-stage wet packed towers with dynamic liquid-to-gas (L/G) ratio regulation to optimize mass transfer efficiency and minimize chemical consumption.
Expand Capabilities & Chemistry
• DRE Rating: Exceeds 99.9% destruction removal efficiency for concentrated halogen acid vapors.
• Tower Construction: Fabricated using high-purity PP-FR, PVDF, or PFA thermoplastics preventing chemical stress cracking.

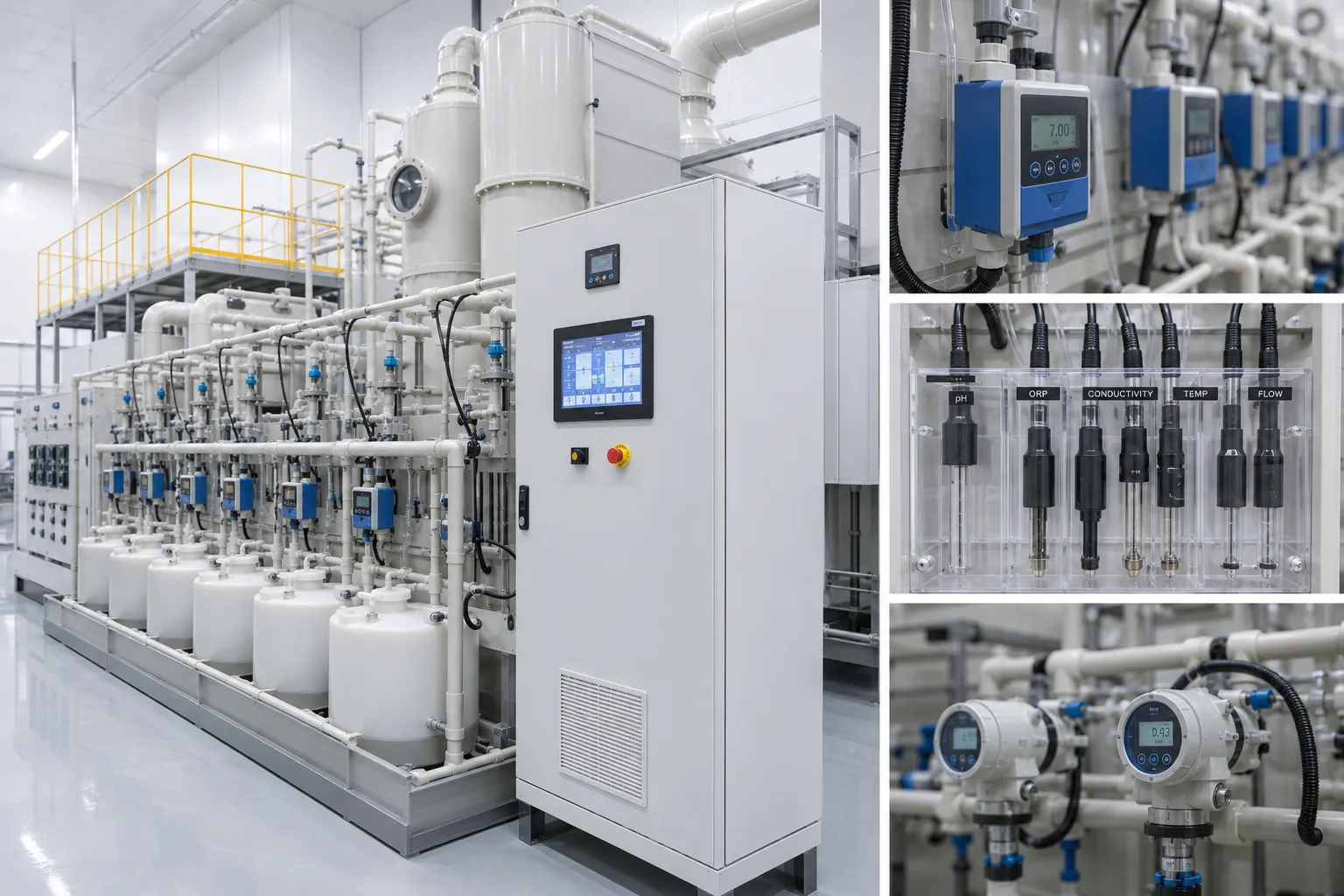

• Control Dynamics: Automated dual-pH closed-loop chemical dosing paired with real-time conductivity blowdown regulation.
Toxic and Hazardous Gas Neutralization
Purpose-built for high-risk chemical exhaust streams originating from CVD, ALD, and epitaxy processes. Integrates multi-stage chemisorption and wet scrubbing to render pyrophoric hydrides, toxic halides, and organometallic compounds completely inert before exhaust discharge.
Expand Capabilities & Chemistry
• Safety Protocols: Integrated auto-isolation valves, emergency reagent buffer tanks, and N2 purge backups.
• Absorption Efficiency: Dual chemisorption beds maintaining outlet concentrations far below Threshold Limit Values (TLV).
• Compliance: Fully compliant with SEMI S2/S8 standards and stringent international environmental safety codes.
VOC and Organic Exhaust Treatment
Optimized for solvent-laden exhaust streams generated during photolithography coating, track developing, and resist stripping operations. Combines hydrophobic zeolite rotor concentrators with thermal oxidation to destroy organic solvent vapors efficiently.
Expand Capabilities & Chemistry
• Concentration Ratio: Achieves up to 25:1 volume reduction using non-flammable hydrophobic zeolite media.
• Thermal Efficiency: Integrated recuperative and regenerative heat recovery cuts fuel consumption by over 70%.
• Safety Assurance: Continuous Lower Explosive Limit (LEL) sensing paired with automated air dilution dampers.

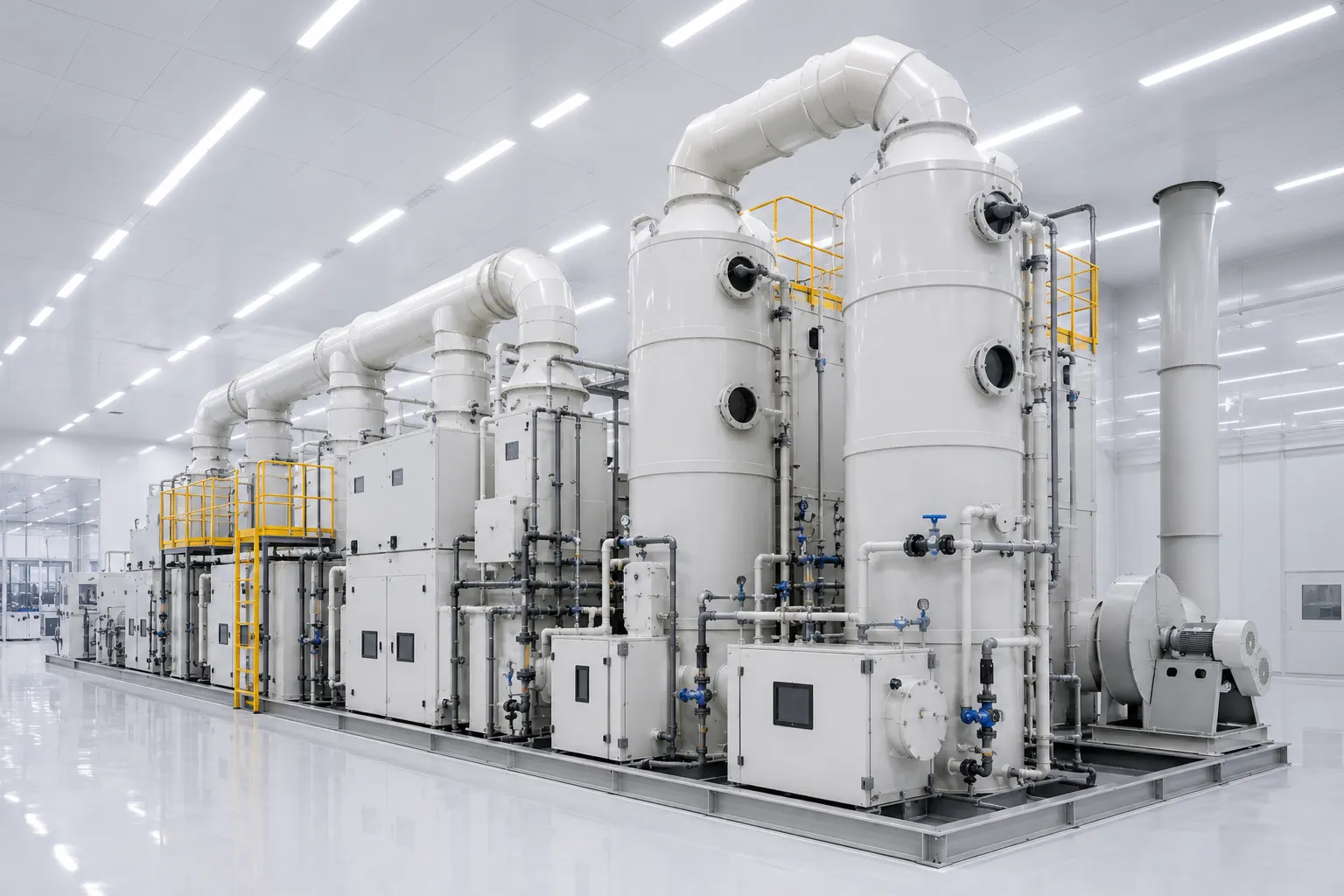

Integrated Multi-Stage Chemical Abatement Engineering
Modern semiconductor fabrication demands precise, uninterrupted hazardous gas treatment across volatile chemical workflows. Standard single-stage scrubbers often fail when subjected to sudden pressure spikes, dynamic flow changes, or complex chemical mixtures from advanced node processing tools. An industrial-grade chemical exhaust scrubber must deliver constant neutralization efficiency while handling continuous gas load fluctuations without downstream downtime.
To address these operational demands, KOSEN SEMI leverages our advanced Engineering Capability to custom build multi-tier exhaust scrubbing solution architectures featuring optimized packed beds, automated dosing systems, and high-efficiency mist eliminators. By maintaining real-time closed-loop monitoring of oxidation-reduction potential (ORP) and pH levels, our systems prevent toxic gas bypass, extend packing life, and lower total cost of ownership through reduced reagent and water consumption.

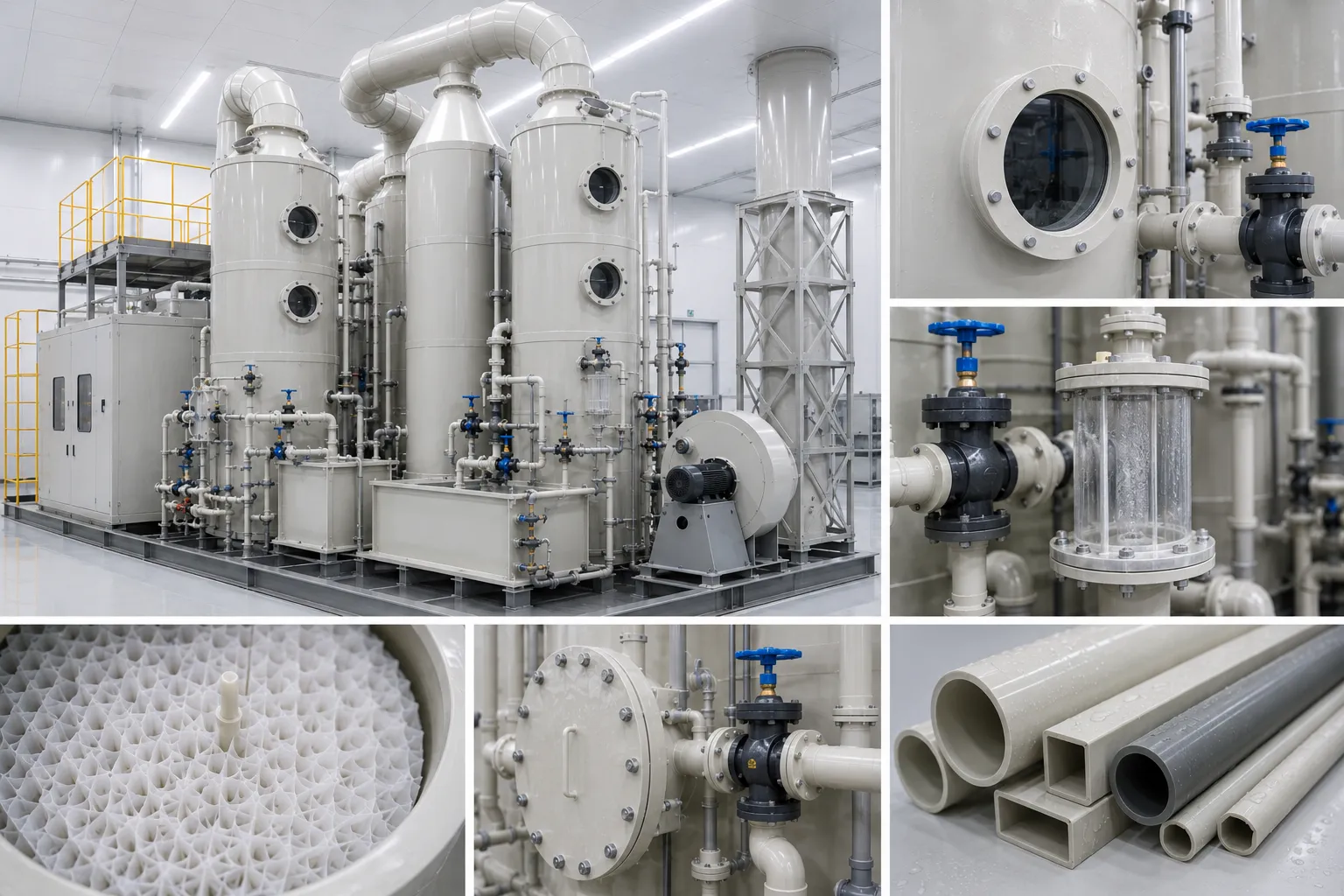

Corrosion-Proof Materials
Constructed from FM 4910-certified fire-retardant polypropylene (PP-FR), PVDF, and structural PTFE for extreme chemical resistance.
Smart Fab Integration
Seamless communication with central sub-fab SCADA and BMS networks using Modbus TCP, Profinet, or EtherNet/IP protocols.
- Modular Layout Configuration: Vertical packed towers or horizontal cross-flow designs engineered to fit tight sub-fab ceiling clearances and existing ducting topologies.
- Low-Pressure Drop Structured Packing: High-surface-area packing media maximizes gas-liquid contact area while minimizing fan energy usage and system backpressure.
- Automated Blowdown & Water Conservation: Integrated conductivity and TDS monitoring optimizes blowdown cycles, drastically cutting freshwater intake and neutralization costs.
Core Technical Features and Engineering Performance
KOSEN SEMI integrates smart sensing technology, specialized fluoropolymer fabrication, and high-efficiency packing media to deliver industry-leading VOC abatement and toxic gas neutralization — minimizing total cost of ownership (TCO) and eliminating unplanned fab downtime.

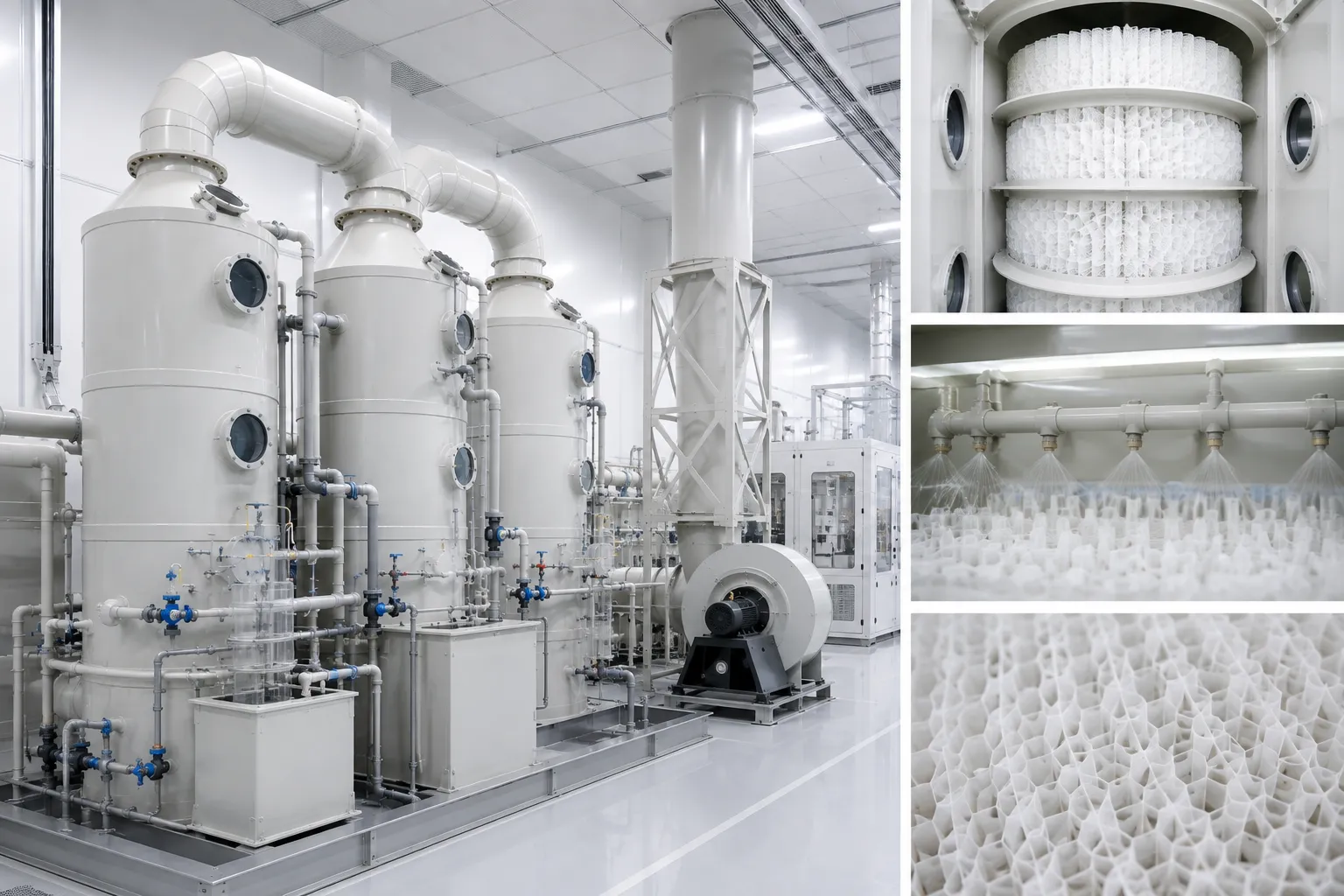

High-Efficiency Mass Transfer and Packing Technology
Effective VOC abatement and toxic gas neutralization rely on maximizing gas-liquid contact efficiency at every phase of wet scrubbing. KOSEN SEMI's custom structured packing media is engineered to deliver high-capacity chemical mass transfer under continuous 24/7 semiconductor fab operating conditions.
Each packing module is geometrically optimized to create an expansive surface area matrix while maintaining an exceptionally low static pressure drop across the packed bed. This balance is vital in semiconductor exhaust systems where duct static pressure and exhaust fan energy consumption directly impact cleanroom HVAC operational costs.
- Zero liquid channel bypass — uniform liquid distribution manifolds eliminate dry zones and maintain consistent chemical absorption across the entire bed cross-section.
- Maximum contact surface area — engineered packing geometry maximizes mass transfer coefficients (Kla) compared to standard random dumped packing.
- Low pressure drop design — minimizes fan static resistance (<200 Pa per bed), directly cutting facility electrical loads across multi-stage tower configurations.
- Multi-stage tower compatibility — modular packing blocks are configurable for single-, dual-, or triple-stage scrubber towers to handle complex inlet gas concentration peaks.
Performance benchmark: KOSEN SEMI structured packing achieves up to 99.9% destruction and removal efficiency (DRE) for target acid, alkaline, and toxic gas exhaust streams — field-proven across 500+ wafer fab installations globally.
99.9%
Removal Efficiency
<200 Pa
Bed Pressure Drop
3-Stage
Modular Architecture
Wafer Fabrication Exhaust Application Scenarios
Semiconductor manufacturing modules produce distinct chemical effluent streams that demand tailored abatement strategies. KOSEN SEMI integrates heavy-duty chemical exhaust scrubbers directly into front-end and back-end fab workflows, guaranteeing continuous environmental safety, uptime reliability, and full regulatory compliance.
Wet Bench & Chemical Etching
Targeted chemical neutralization for high-concentration acid baths, continuous wet stripping lines, and corrosive mist suppression during advanced wafer-cleaning-systems steps.
CVD & Thin Film Deposition
Advanced abatement engineered to neutralize pyrophoric silane, organometallics, and volatile thin film deposition gas from PECVD, ALD, and LPCVD processes.
Lithography & Track Vent
High-capacity VOC capture and emissions control for track bake systems, developer exhaust streams, solvent vents, and photoresist stripping tracks.
CMP & Wafer Processing
Slurry mist scrubbing, micro-particulate separation, and alkaline vapor control during Chemical Mechanical Planarization polishing cycles.
Optimizing Wafer Fabrication Exhaust Treatment Across Fab Modules
Effective treatment of wafer fabrication exhaust requires balancing high mass transfer efficiency with uncompromising material compatibility. Advanced semiconductor processes emit volatile solvent organics, concentrated acid mists, and hazardous chemical aerosols that can quickly compromise standard ventilation equipment. Without process-matched gas scrubbing, semiconductor fabs face severe duct corrosion, unplanned tool downtime, and strict environmental compliance risks.
When handling reactive thin film deposition gas mixtures, residual silanes, organometallics, and toxic reaction byproducts must undergo controlled thermal or chemical conversion before passing through packed wet scrubbing columns. Backed by our robust Engineering Capability, KOSEN SEMI designs custom point-of-use and sub-fab scrubber systems that integrate seamlessly into tool exhaust lines, ensuring long-term operational uptime for high-volume wafer fabrication plants worldwide.
Key Engineering Safeguards
- ✓ Corrosion-Proof Materials: Construction using high-purity PP-FR, PVDF, and PTFE components certified to FM 4910 cleanroom fire safety standards.
- ✓ SEMI S2 Compliance: Integrated dual-containment fluid delivery, automated neutralizer dosing, and real-time toxic gas sensor interlocks.
- ✓ Zero-Bypass Bed Architecture: Structured high-efficiency packing media designed for maximum fluid contact area and minimal pressure loss.
Application Compatibility Matrix
Overview of KOSEN SEMI abatement architectures by semiconductor manufacturing module.
| Process Zone | Effluent Output | Recommended Tech |
|---|---|---|
| Wet Etch & Clean | Corrosive Acid Mist | Multi-Stage Wet Packed |
| CVD / ALD Deposition | Toxic & Pyrophoric Gas | Thermal-Wet Hybrid |
| Lithography Track | Solvent VOC Vapors | Rotor VOC Concentrator |
| CMP Polishing | Alkaline Aerosol Mist | High-Velocity Venturi |
Require custom airflow sizing or sub-fab duct integration?
Request Application Engineering AssessmentSEMI S2 Compliance & Global Safety Standards
KOSEN SEMI chemical exhaust scrubbers adhere strictly to international manufacturing facility safety guidelines. We eliminate qualification friction for enterprise semiconductor fabs by delivering verified SEMI S2 compliance and robust environmental safety standards across every installation.
SEMI S2 / S8 Standard
Mandatory environmental, health, and safety (EHS) compliance, electrical design validation, and ergonomic human factors integration for fab equipment.
ISO 9001:2015
Rigorous quality control protocols ensuring precision manufacturing, continuous performance audits, and high reliability across all abatement systems.
ISO 14001:2015
Comprehensive environmental management systems designed to minimize chemical waste, reduce carbon footprint, and support clean production.
CE Compliance
Full alignment with European Union health, safety, and environmental protection standards for industrial chemical treatment machinery.
FM 4910 Materials
Certified flame-retardant polymer construction meeting strict cleanroom fire safety, minimal smoke emission, and corrosion resistance standards.
SEMI S2 & S8 Compliance
Comprehensive EHS validation ensuring total operational safety and ergonomic integration for semiconductor fabrication lines, accelerating tool hookup and fab qualification alongside our semiconductor wet bench systems.
- Integrated Electrical & Gas Hazard Mitigation
- SEMI S8 Human Factors & Maintenance Ergonomics
ISO Quality & CE Standards
Internationally recognized quality management and environmental protection frameworks backing system craftsmanship, structural integrity, and EU machinery directive compliance.
- ISO 9001:2015 Precision Fabrication Protocols
- ISO 14001 Sustainable Manufacturing Compliance
FM Approved Fire Safety
Constructed with FM 4910 listed materials to prevent flame propagation, eliminate cleanroom contamination risks, and guarantee long-term acid and solvent resistance for Automatic Wet Bench Systems.
- FM 4910 Certified Flame-Retardant Plastics
- Ultra-Low Smoke & Chemical Outgassing Design

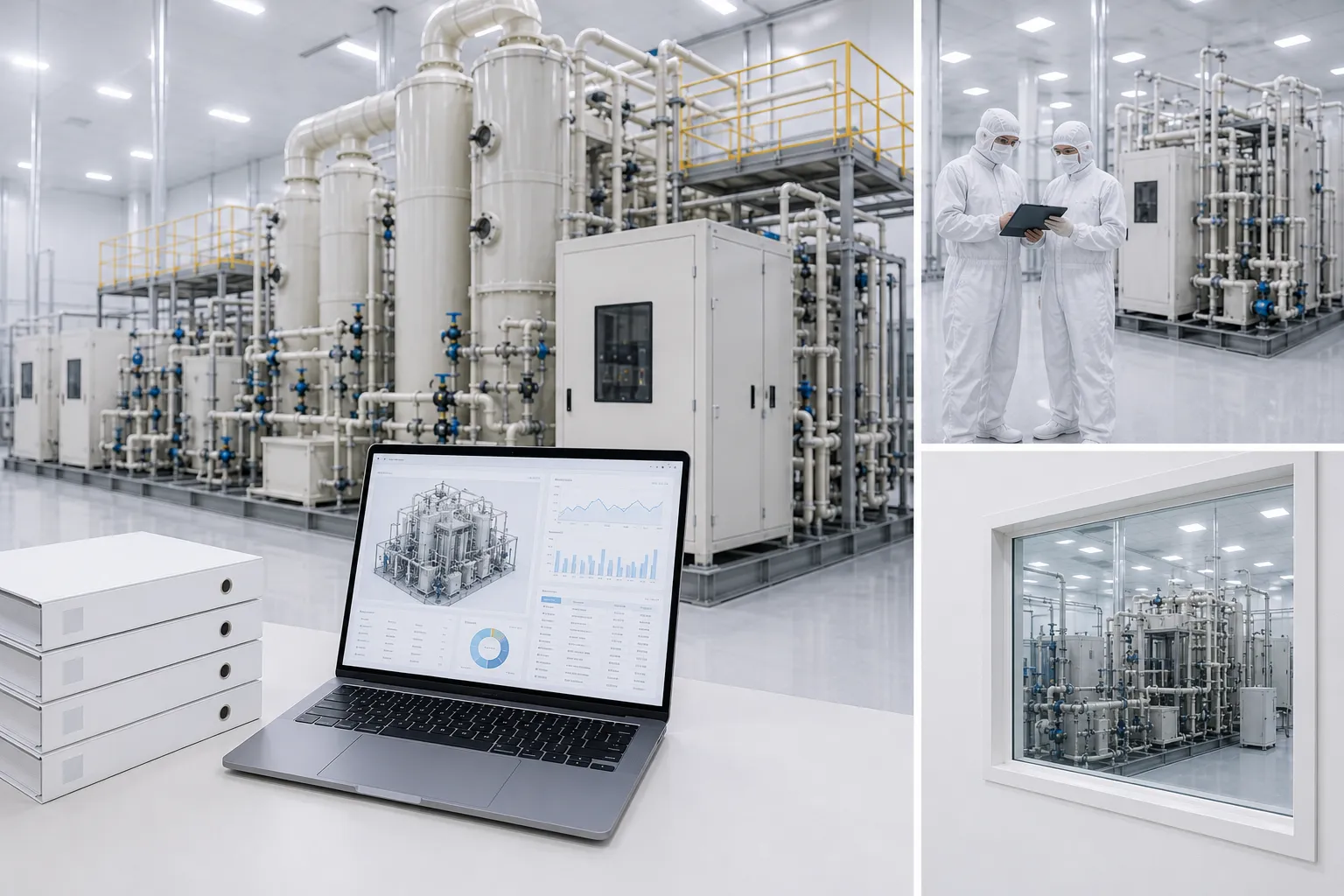

Accelerate Tool Qualification with Turnkey Compliance
Tier-1 semiconductor manufacturers require immediate compliance verification before tool installation. KOSEN SEMI provides complete third-party audit reports, certification records, and EHS documentation to ensure smooth integration into your cleanroom facility.
Chemical Scrubber Selection Guide and Technical FAQ
KOSEN SEMI application engineers deliver advanced engineering capability to provide end-to-end sizing support and seamlessly integrate gas abatement hardware into your master fab architecture. Use our technical guide to evaluate critical process parameters, establish your industrial gas treatment spec, and determine the optimal chemical scrubber selection profile for your facility.
3-Step System Sizing Guide
Follow this structured engineering sequence to define your precise industrial gas treatment spec prior to final hardware procurement and cleanroom sub-fab integration.
- 1
Define Gas Composition and Concentration Profiles
Identify all target chemical species (such as HCl, HF, HNO3, NH3, or solvent VOC vapors) and establish baseline and peak concentration profiles measured in ppm or mg/m³. Precise inlet load modeling ensures accurate liquid-to-gas (L/G) ratio calculations and optimal neutralizing reagent dosing.
- 2
Calculate Total Exhaust Airflow and Static Pressure Drop
Determine total volumetric exhaust airflow requirements expressed in CFM or m³/h alongside the maximum allowable static pressure drop across the vessel. Balanced packed bed hydraulics preserve stable gas-liquid contact times without overburdening primary fab exhaust fans.
- 3
Specify Structural Materials and Automated Reagent Control
Select high-grade corrosion-resistant thermoplastics, such as flame-retardant polypropylene (PP-FR) or high-purity PVDF, based on chemical compatibility and thermal exposure. Pair with automated closed-loop pH, ORP, and conductivity control for dynamic chemical dosing.
Technical Frequently Asked Questions
How are scrubber footprint dimensions adapted to existing fab cleanroom layouts?
What measures ensure high neutralization efficiency for concentrated acid gases like HF and HCl?
How do KOSEN SEMI scrubbers integrate with central fab PLC networks?
When should PVDF be specified over standard PP-FR structural materials?
What maintenance schedules are required for packed bed wet scrubbers?
Ready to Upgrade Your Semiconductor Gas Abatement System?
Consult with KOSEN SEMI chemical engineers for custom line sizing, technical documentation, or budgetary quotes within 24 hours. Learn more about-us and how our modern manufacturing-facility houses specialized production units. Partner directly with a trusted semiconductor scrubber manufacturer to secure custom gas abatement solutions tailored specifically to your fab capacity expansion, or explore our advanced semiconductor-wet-bench-systems.
