Semiconductor Wet Bench Installation & Fast-Track Delivery
Seamlessly integrating high-precision chemical wafer cleaning systems and etching systems into space-constrained cleanroom environments. Discover how our turn-key deployment accelerated ramp-up with zero compromise on safety or yield.
Turn-key deployment study for semiconductor, optoelectronic, and microelectronics fabrication facilities.
Wet Bench Equipment Commissioning & Fab Integration

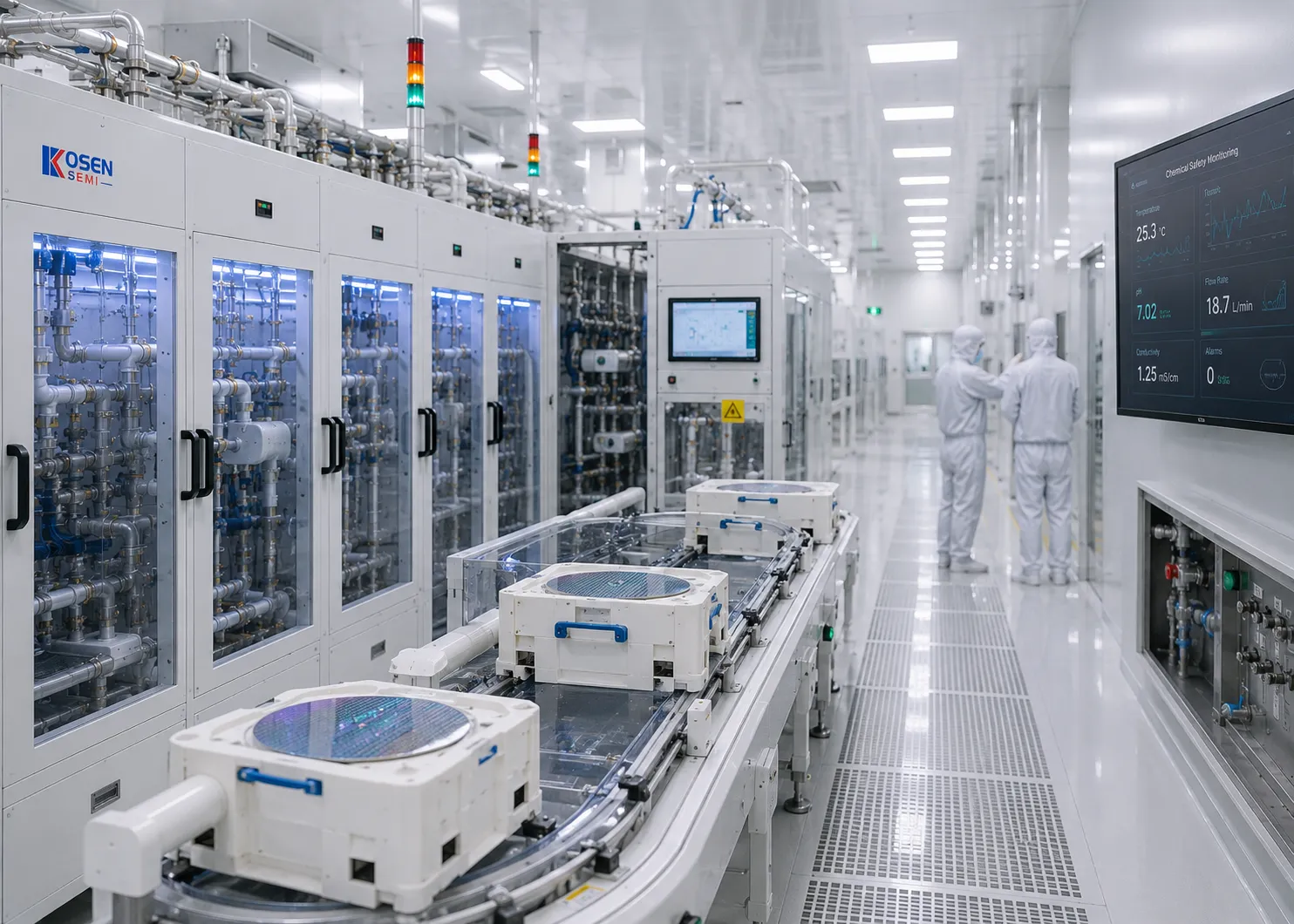

Overcoming Wet Bench Footprint & Cleanroom Integration Challenges

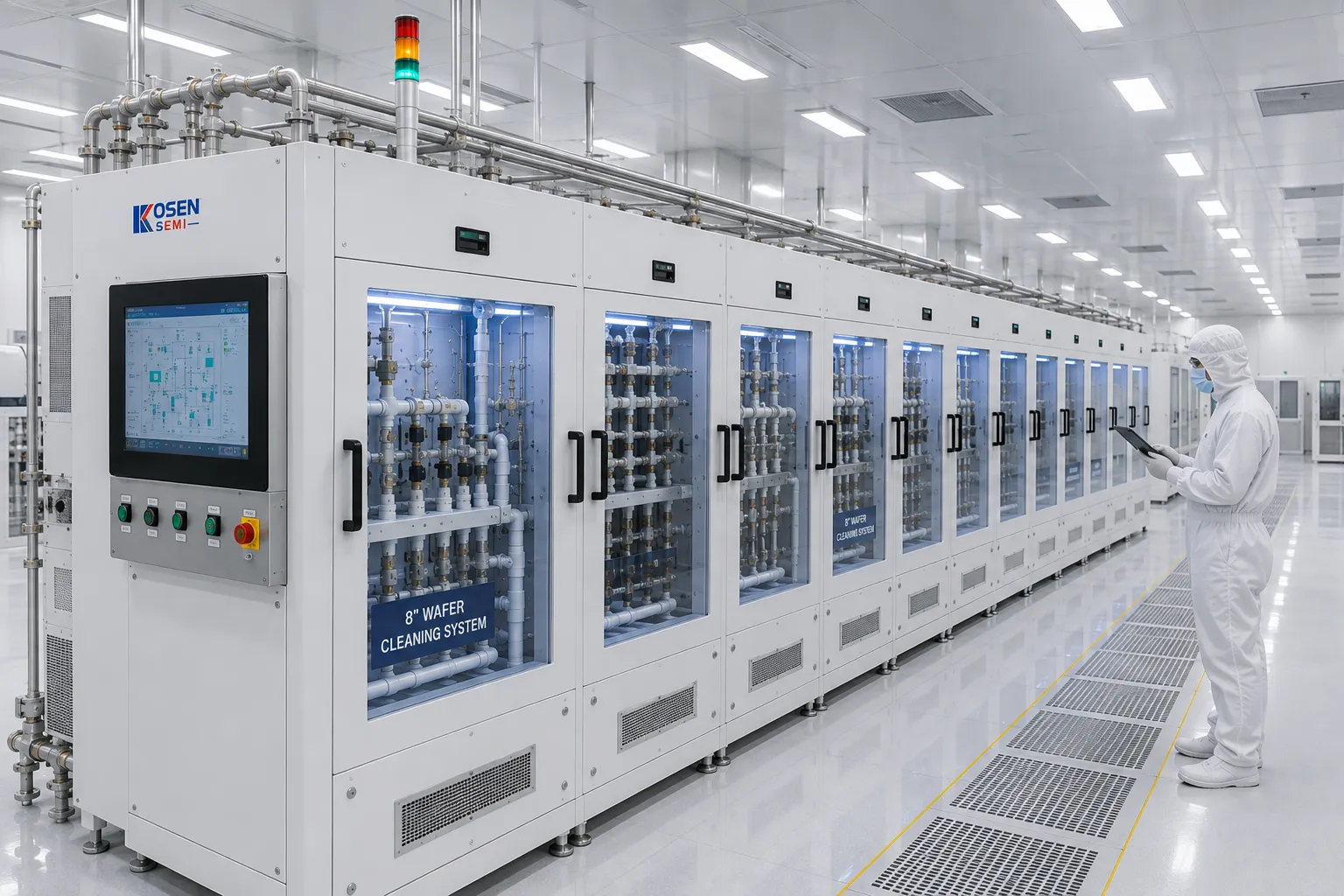

Upgrading an active 8-inch semiconductor wafer cleaning systems and etching line presented severe spatial, structural, and chemical safety constraints. KOSEN SEMI addressed these complex customer challenges through advanced 3D spatial scanning, leveraging our world-class Engineering Capability to ensure seamless cleanroom integration and uninterrupted fab operations.

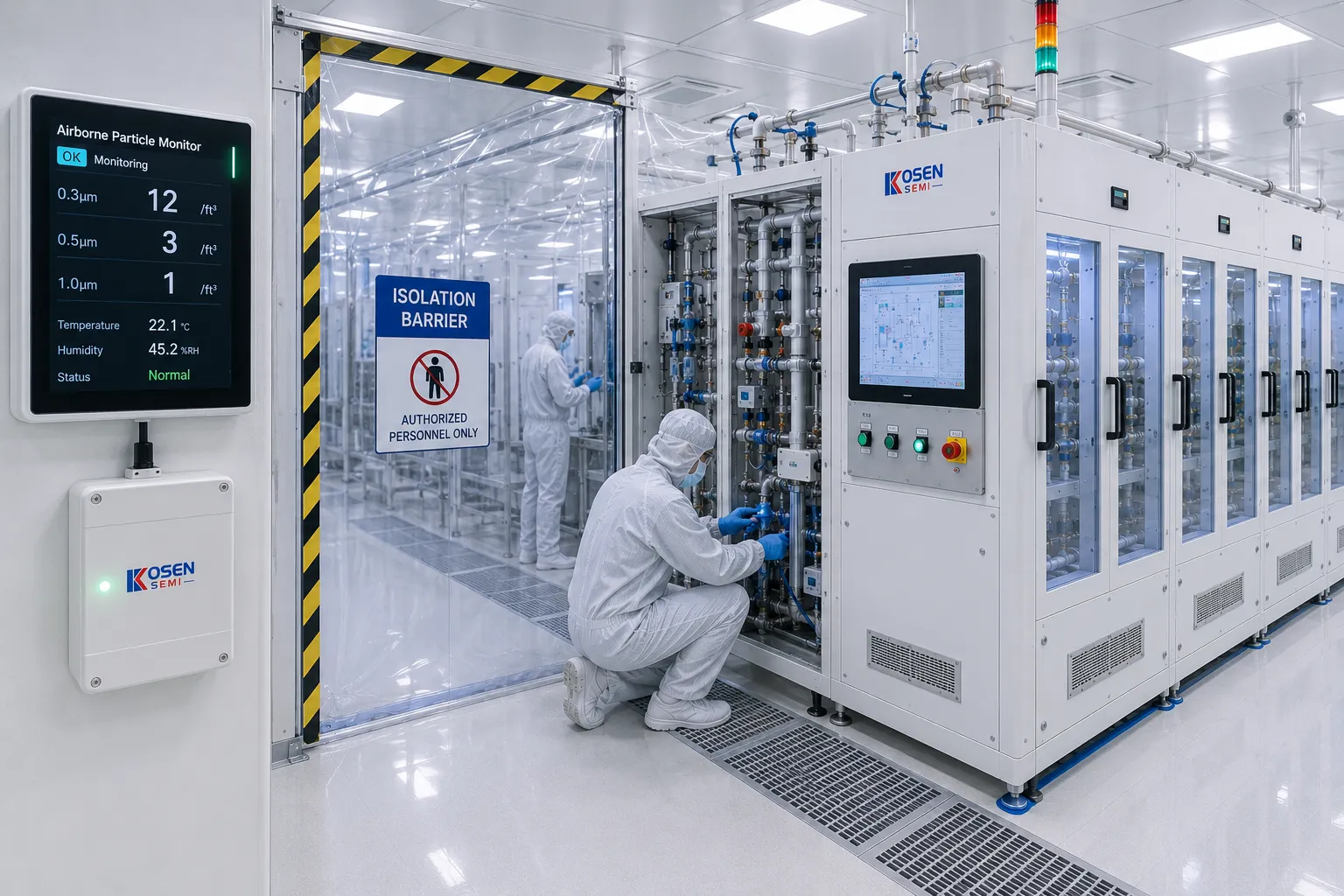

Spatial & Environmental Constraints
- Narrow Access Corridors: Restricted cleanroom entryways required precise equipment dimensional planning for tool transport.
- Tight Ceiling Clearances: Low overhead space and existing utility ductwork constrained wet bench height and exhaust routing.
- Micro-Vibration Limits: Strict isolation controls were mandatory to prevent interference with nearby active production equipment.
Process & Chemical Safety Demands
- Chemical Delivery Integrity: High-purity concentrated acid and alkali supply required stable flow with zero concentration degradation.
- Corrosion Resistance: Custom fluoropolymer components were engineered to withstand continuous exposure to harsh chemicals.
- Leakage Risk Protection: Dual-containment piping and safety interlocks protected personnel and cleanroom environments.
KOSEN SEMI 3D Spatial Scanning Solution
KOSEN SEMI conducted high-precision 3D spatial scanning across the existing fab bay layout. By mapping the facility digitally prior to installation, we eliminated spatial collisions, optimized the wet bench footprint, and accelerated utility hook-up execution.
Cleanroom Technical Standards

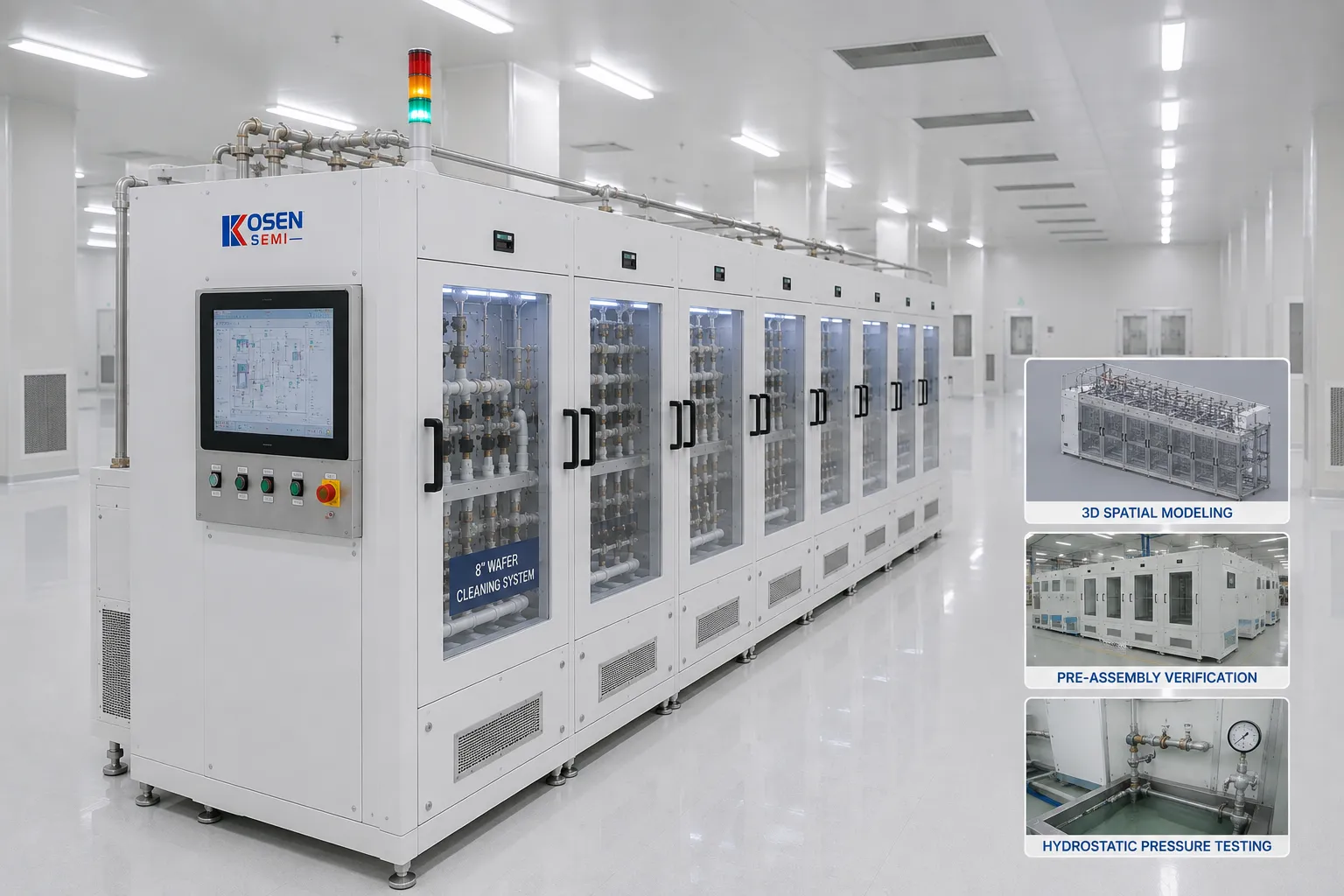

Customized Wet Bench Engineering Solutions for Semiconductor Fabs
KOSEN SEMI delivers application-driven, custom-engineered semiconductor wet bench solutions designed to overcome complex cleanroom footprints and strict process requirements. Backed by our robust Engineering Capability, our high-purity chemical delivery systems and full SECS/GEM fab automation turnkey equipment architectures guarantee fast deployment, optimal process yield, and total compliance with SEMI S2 and SEMI S8 safety standards. Learn more about-us and our commitment to semiconductor manufacturing.
Custom Equipment Architecture & Modular Tank Engineering
We design modular thermoplastic and quartz tank structures tailored to aggressive acid, solvent, and etch chemistries. Each customized wet station is optimized for maximum chemical compatibility, precise thermal dynamics, and minimal particle generation during high-throughput wafer-cleaning-systems routines.
- Modular PP & PVDF Baths: Custom-welded, high-purity polypropylene (PP) and polyvinylidene fluoride (PVDF) tanks resistant to concentrated HF, HNO3, SPM, and SC1/SC2 chemistries.
- Inline Chemical Heating: High-precision direct immersion heaters and PVDF heat exchangers maintain sub-degree thermal stability across multi-bath processing cycles.
- Continuous Recirculation & Filtration: Magnetic-drive chemical pumps combined with sub-micron PTFE filter cartridges continuously remove process particulates.
Facility Secondary Hook-Up & Piping Integration
Ensuring a seamless connection between utility mains and tool inputs requires specialized secondary hook-up engineering. KOSEN SEMI integrates high-purity chemical delivery systems, automated exhaust management, and segregated waste collection directly into customer cleanroom infrastructure.
- High-Purity Chemical Delivery: Double-contained PFA tubing with leak-proof compression fittings prevents chemical contamination and protects facility personnel.
- Exhaust & Drain Segregation: Dedicated acid, solvent, and alkaline drain lines isolate incompatible effluent streams, safeguarding facility infrastructure.
- Space-Saving Footprint: Valve manifold boxes (VMB) and compact piping layouts fit precisely within tight cleanroom ceiling and sub-floor clearances.
SECS/GEM Automation & Software Integration
Modern semiconductor manufacturing demands complete process traceability and central recipe management. Our custom automated wet benches feature industrial PLC architectures integrated with host Manufacturing Execution Systems (MES) via standard SECS/GEM protocols.
- SECS/GEM Protocol (E30/E37): Native fab communications support automated recipe downloading, wafer lot tracking, real-time telemetry, and alarm logging.
- PLC Motion Control: Industrial PLC systems manage multi-axis robotic lifters for smooth, precise immersion profiles and accurate bath dwell times.
- Intuitive Touchscreen HMI: User-friendly touchscreens display real-time process visual telemetry, diagnostic logs, and configurable security access levels.
SEMI S2 & S8 Certified Safety Systems
Hazardous chemical processing requires uncompromised operational safety. KOSEN SEMI builds active and passive multi-layered safety mechanisms into every tool, strictly adhering to global SEMI S2 (EHS) and SEMI S8 (Ergonomics) cleanroom benchmarks.
- Dual Containment & Leak Detection: Integrated optical leak sensors activate automated pneumatic shutoff valves instantaneously upon chemical breach.
- Exhaust Airflow Safeguards: Continuous differential pressure sensors monitor exhaust velocity to prevent hazardous vapor accumulation inside the cleanroom.
- Ergonomic Splash Protection: Transparent interlocked splash shields and ergonomic loading heights protect technicians during chemical operations.
Engineered Solution Specifications Overview
Every semiconductor wet bench solution from KOSEN SEMI undergoes pre-assembly verification, 3D spatial modeling, and rigorous hydrostatic pressure testing. We match custom hardware engineering with site hook-up constraints to guarantee plug-and-play field installation and commissioning.
| Engineering Subsystem | Standard Material / Protocol | Compliance Rating |
|---|---|---|
| Process Tanks | High-Purity PP, PVDF, Quartz, FM4910 | ISO Class 5–7 |
| Piping & Valves | PFA Double Contained / PTFE Valves | Leakage-Controlled Standard |
| Fab Automation | SECS/GEM (E30, E37) & Industrial PLC | MES Integration Ready |
| Safety Standards | Dual Exhaust & Interlocked Controls | SEMI S2 & SEMI S8 |

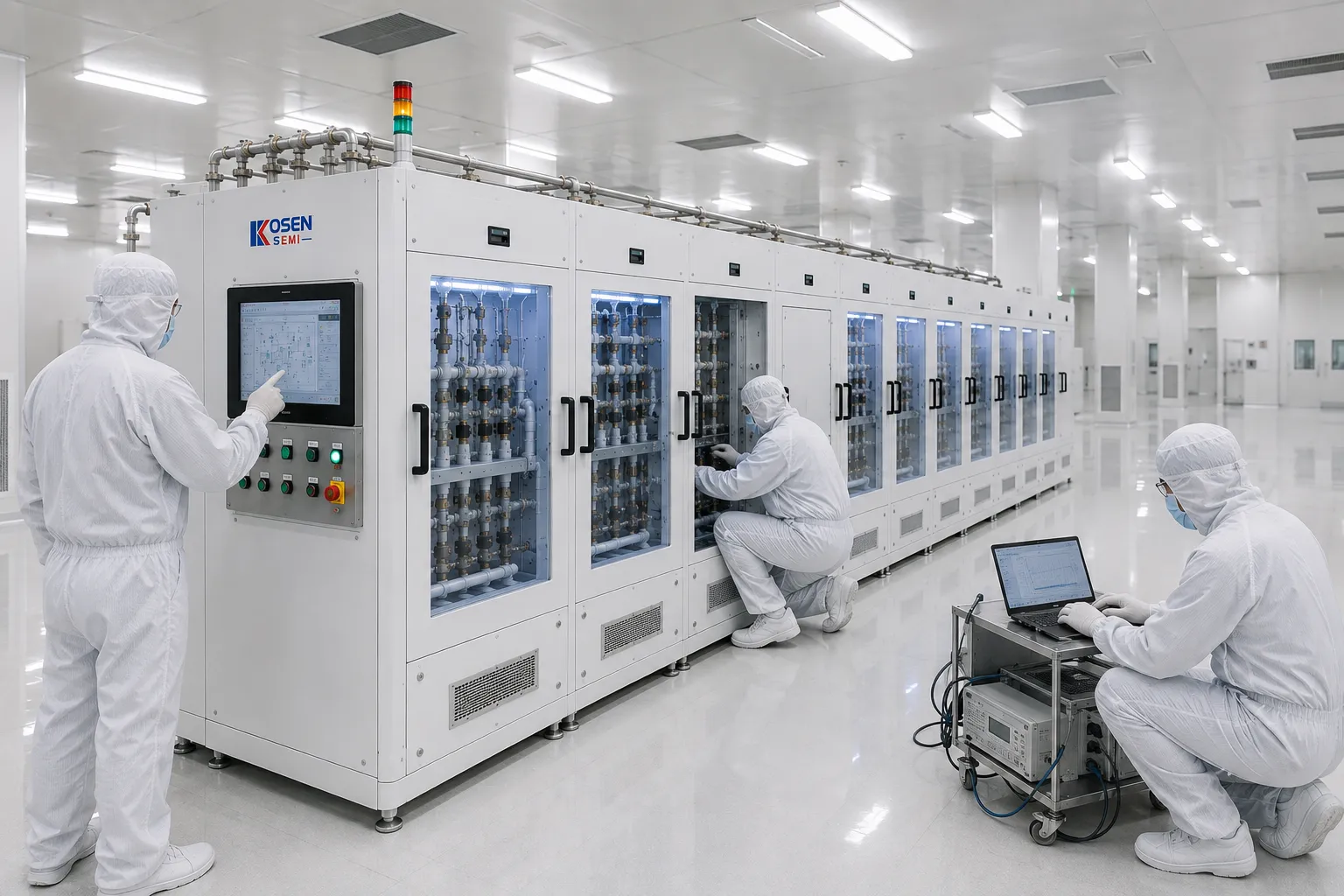

Standardized Wet Bench Installation and Commissioning Process
KOSEN SEMI certified field service engineers follow rigorous SOPs to ensure seamless semiconductor equipment commissioning, complete FAT SAT validation, and rapid production readiness for advanced semiconductor wet bench systems.
Factory Acceptance Testing (FAT) & Vacuum Packaging
Rigorous FAT validation verifies hardware performance prior to dispatch. Systems undergo cleanroom anti-static vacuum packaging for safe transit.
- ✓ Comprehensive Factory Acceptance Testing (FAT) and functional sequence validation.
- ✓ Cleanroom-certified anti-static vacuum packaging and secure logistics management.
On-Site Dust-Free Rigging & Precision Positioning
Engineers execute specialized dust-free rigging in sensitive fab environments, using optical leveling and precision alignment.
- ✓ Dust-free rigging protocols designed specifically for high-class cleanrooms.
- ✓ Precision tool positioning paired with advanced optical leveling techniques.
Piping Connections & Pressure Testing
Engineers connect high-purity chemical piping, exhaust tie-ins, and pneumatic lines followed by strict pressure and leak testing.
- ✓ High-purity piping hook-up, drain interlocks, and acid exhaust tie-ins.
- ✓ Pneumatic line integration, safety shut-off checks, and pressure decay testing.
Site Acceptance Testing (SAT) & Calibration
SAT validation includes DI water flushing, live chemical trial runs, particle baseline testing, and full recipe calibration.
- ✓ Site Acceptance Testing (SAT) with DI water and real-world chemical trials.
- ✓ Particle baseline testing, SECS/GEM interface verification, and process tuning.
Field Engineer Expertise
Supported by our advanced Engineering Capability, KOSEN SEMI certified field service engineers adhere strictly to standardized SOPs, managing every wet bench installation process step with zero-defect execution.
Standardized Execution
Certified service engineers enforce uniform SOPs across every wet bench installation process to eliminate integration risk.
FAT SAT Validation
End-to-end factory and site testing frameworks minimize start-up risks and accelerate production timelines.
Yield Readiness
200 nm particle baseline testing, with optimized evaluation down to 100 nm and precise calibration ensure rapid tool sign-off and high-yield ramp-up.
Operational Results and Quantified Performance Gains
Empirical performance data from a completed 8-inch wafer fab deployment, highlighting process yield enhancement, chemical safety results, and overall uptime improvement.
Throughput Increase
Wafer processing throughput increased by 25%, significantly shortening overall batch cycle times across active production lines equipped with Single Wafer Cleaning Systems.
Yield Improvement
Surface contamination dropped to controlled particle levels at ≥200 nm, with optimized evaluation down to 100 nm, driving a 1.8% overall process yield enhancement.
Chemical Cost Reduction
Integrated reclaim systems recycled 15% of chemical volumes, delivering validated chemical safety results and lower disposal costs.
Schedule Performance
SAT sign-off was achieved 5 days ahead of schedule, accelerating time-to-market and maximizing fab uptime improvement.
Operational Benchmarks vs. Baseline
Quantified performance metrics achieved following KOSEN SEMI wet bench installation.
| Performance Indicator | Baseline Target | KOSEN SEMI Impact |
|---|---|---|
| Wafer Throughput | Standard Fab Baseline | +25% Processing Capacity |
| Surface Defect Control | ISO Class 5–7 Baseline | Process-Specific Control @ ≥200 nm; Optimized to 100 nm |
| Chemical Utilization | Single-Use Disposal | 15% Reclaimed & Recycled |
| SAT Commissioning | Standard Schedule | Completed 5 Days Early |
Validated Cleanroom Integration
Our custom solutions draw from proven Engineering Capability to combine seamless cleanroom integration with continuous chemical safety results to accelerate yield ramp-up for leading semiconductor fabs.
Accelerate Your Fab Ramp-Up with KOSEN SEMI
Partner with our wet processing experts to ensure rapid uptime improvement and proven process yield enhancement.
Professional Qualifications and Cleanroom Compliance Guarantee

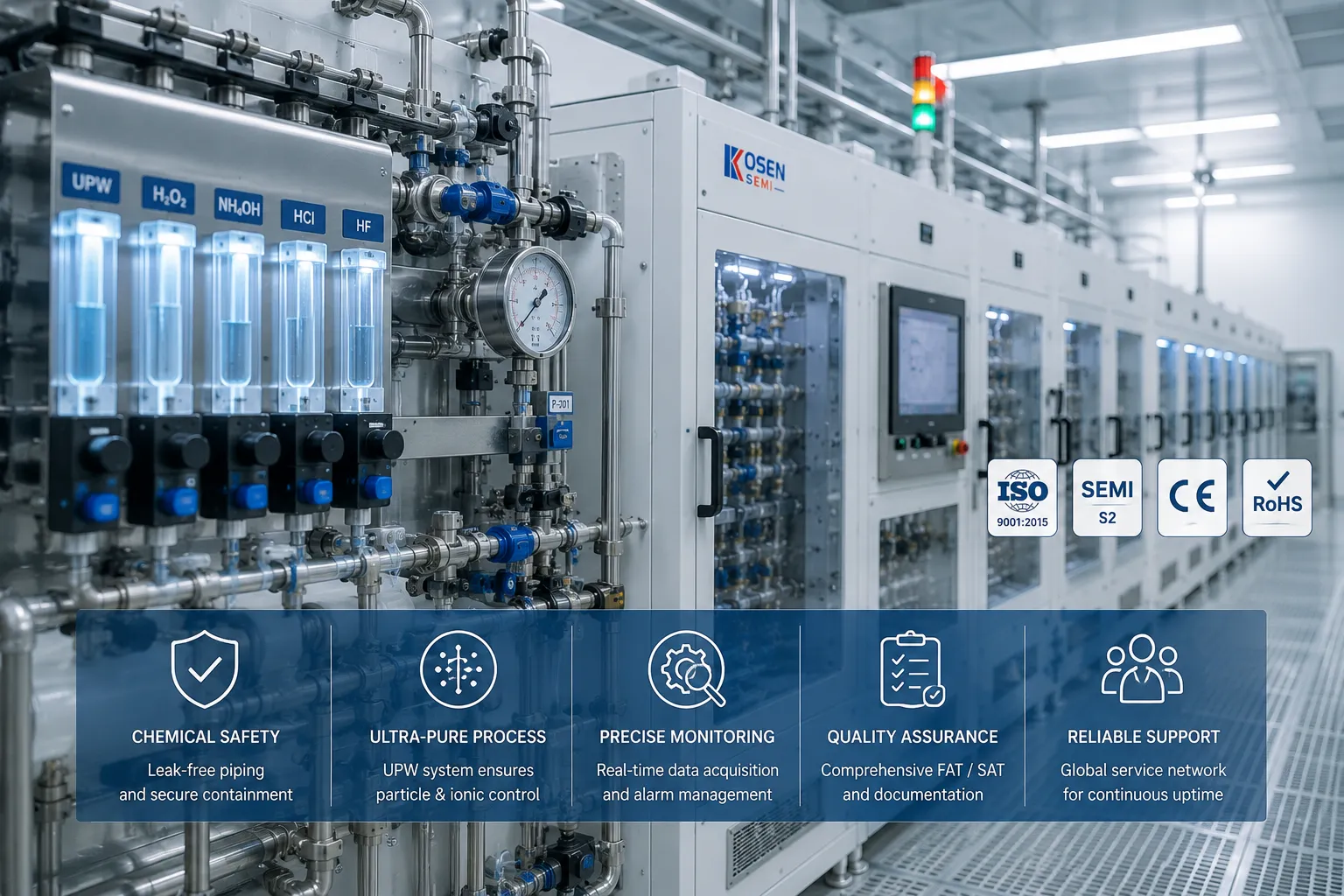

KOSEN SEMI combines proven semiconductor wet bench systems expertise with stringent cleanroom safety protocols. Learn more about us and our commitment to safety. Meeting rigorous global benchmarks, our certified engineering teams ensure every cleanroom equipment installation adheres to international safety, ergonomic, and environmental standards—from pre-rigging facility prep through final site acceptance testing (SAT).
International Standards Compliance
Uncompromising adherence to globally recognized semiconductor safety guidelines, ensuring chemical isolation and continuous facility integrity.
- • SEMI S2 & SEMI S8 Certified: Thorough environmental, safety, health, and ergonomic evaluations for high-hazard wet bench processing.
- • ISO Class 5–7 Cleanrooms: Controlled-particulate protocols using anti-static triple-bagging, controlled staging, and clean room tool entry.
- • CE & Pressure Vessel Directives: Full compliance across European Machinery Directives, EMC, low voltage, and chemical fluid containment.
10+ Years Engineering Expertise
Field deployment led by veteran wet process engineers with hands-on experience in 200mm and 300mm high-volume wafer fabrication plants.
- • Certified Field Engineers: Specialized in optical leveling, micro-vibration dampening, and high-purity PFA/PVDF secondary hook-ups.
- • Precision Alignment & Rigging: Laser-guided tool placement preventing structural stress, micro-fractures, and ambient floor vibration.
- • Standardized Execution SOPs: Strict cleanroom discipline minimizing particulate generation and cross-contamination during setup.
Lifecycle Support & Maintenance
End-to-end technical partnership ensuring maximum tool uptime, immediate spare parts availability, and proactive maintenance programs.
- • 24/7 Remote Technical Response: Instant diagnostics for SECS/GEM communication protocols and automated PLC control systems.
- • Rapid Spare Parts Fulfillment: Dedicated inventory of ultra-pure chemical valves, PFA tubing, pumps, and sensor components.
- • Preventive Maintenance Plans: Scheduled chemical bath integrity checks, flow sensor calibration, and process yield tuning.
Rigorous Standards Safeguarding Fab Infrastructure
Cleanroom equipment installation requires robust isolation of corrosive chemical supply lines, continuous exhaust monitoring, and dedicated ground bonding. Backed by extensive Engineering Capability in semiconductor wet processing, KOSEN SEMI adheres to uncompromising industry benchmarks across every phase of facility integration and equipment commissioning.
Static-free vacuum packaging and multi-stage wipe-down protocols before cleanroom airlock entry.
Dual-contained fluoropolymer chemical lines with automated leak-detect sensors and shutoff valves.
Semiconductor Benchmark Compliance Overview
Detailed safety standards and engineering qualifications integrated into every KOSEN SEMI wet bench installation.
| Standard / Qualification | Scope of Application | KOSEN SEMI Delivery Guarantee |
|---|---|---|
| SEMI S2 Compliance | Environmental, Health, & Safety (EHS) Guidelines | Interlocked exhaust differential monitoring, Emergency Power Off (EPO) circuits, and chemical containment. |
| SEMI S8 Compliance | Ergonomics Engineering for Semiconductor Tooling | Optimized chemical bath access, reachability for touchscreen UIs, and ergonomic anti-splash shielding. |
| ISO 14644-1 Class 5–7 | Airborne Particulate Cleanliness in Cleanrooms | Triple-layer cleanroom packaging, anti-static wipe-downs, and cleanroom-qualified crane rigging protocols. |
| CE Marking Directives | European Safety, Health, & Environmental Conformity | Verified compliance across Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC), and Machinery Directives. |
Wet Bench Installation Technical FAQ
Deploying automated chemical processing and wafer cleaning equipment into an active cleanroom requires rigorous contamination control, precise secondary hook-up integration, and systematic qualification protocols. Below are detailed technical responses regarding wet bench delivery timelines, facility integration, SEMI safety compliance, and site validation. Learn more about us and our specialized cleanroom methodologies.
What is the typical timeline for standard wet bench installation through SAT sign-off?
A standard automated wet processing bench installation timeline typically spans 10 to 15 working days from initial cleanroom ingress through final Site Acceptance Testing (SAT) sign-off, assuming facility secondary hook-ups and utility drops are pre-validated.
- Phase 1: Rigging, Ingress & Positioning (Days 1–2): Airlock transfer, precision optical leveling, vibration-isolation positioning, and structural floor anchoring.
- Phase 2: Secondary Hook-Up & Utilities (Days 3–6): Ultra-pure water (UPW) integration, double-contained chemical feed tie-ins, acid/solvent exhaust connections, and pneumatic lines.
- Phase 3: Pressure, Leak & Safety Testing (Days 7–9): Helium leak checks, pneumatic decay testing, exhaust airflow balancing, and SEMI S2 Emergency Off (EMO) system validation.
- Phase 4: SAT & Process Calibration (Days 10–12+): DI water recirculation trials, automated chemical bath dosing checks, surface particle verification at ≥200 nm, with optimized evaluation down to 100 nm, and MES SECS/GEM sign-off.
By leveraging pre-validated Factory Acceptance Testing (FAT) protocols and standardized installation SOPs, KOSEN SEMI certified field engineers frequently compress cleanroom deployment timelines for Automatic Wet Bench Systems by up to 30%, enabling rapid production yield ramp-up.
How is contamination controlled during wet bench installation inside an active cleanroom?
Preventing airborne particle contamination and micro-particulate shedding in ISO Class 5–7 cleanroom environments during heavy equipment installation requires strict isolation, non-outgassing tools, and continuous environmental monitoring.
- Multi-Stage Vacuum Packaging Equipment is double- or triple-wrapped in anti-static, vacuum-sealed polyethylene film at the factory. Outer protective layers are stripped in designated anterooms prior to cleanroom entry.
- Non-Marking Rigging Equipment Rigging utilizes electro-polished stainless steel lifting gear, non-marking polyurethane casters, and air cushion systems to eliminate particulate generation during positioning.
- Localized Isolation Workzones Temporary softwall HEPA isolation barriers with negative air pressure maintain complete segregation between the installation footprint and active wafer processing bays.
- Real-Time Airborne Particle Auditing Continuous laser particle counters monitor air quality in adjacent bays, ensuring uninterrupted adherence to ISO Class 5–7 environmental standards throughout deployment.
Does the installation service include secondary hook-up and central chemical delivery integration?
Yes. KOSEN SEMI provides comprehensive, turn-key secondary hook-up engineering as an integral part of our semiconductor wet bench systems commissioning services.
Our experienced field engineering team manages total physical and electrical interconnectivity between the wet bench and central facility infrastructure. This encompasses high-purity PFA and PVDF double-contained chemical feed lines, segmented acid and solvent exhaust ducting, segregated chemical drain manifolds, N2/CDA pneumatic tie-ins, and SECS/GEM interface protocol alignment with the fab Manufacturing Execution System (MES).
Can wet bench equipment be modularly shipped and assembled for facilities with limited access?
Yes. Existing semiconductor fabs, legacy cleanrooms, and high-density manufacturing bays frequently feature tight airlock clearances, narrow passageways, low ceiling heights, and stringent floor load limits.
To overcome demanding spatial and structural constraints, KOSEN SEMI engineers custom modular PP (Polypropylene) and PVDF bath sub-assemblies. Main equipment frames, chemical management cabinets, and processing baths are engineered for split-module transit and rapid precision re-assembly inside the cleanroom.
- 3D spatial laser scanning executed prior to shipment to verify pathway clearances, doorway margins, and floor load distribution.
- Modular high-purity PP/PVDF structural joints designed for ultra-clean, seamless cleanroom thermal butt-welding.
- On-site precision optical alignment and certified PFA infrared orbital welding performed by certified field specialists.
Request Layout & Utility Evaluation
KOSEN SEMI technical specialists are available to perform 3D cleanroom spatial audits, structural footprint modeling, and secondary hook-up utility evaluations for your upcoming wet bench deployment.
Controlled Cleanroom Interruption Risk
Standardized field SOPs, localized isolation barriers, and continuous airborne particle monitoring reduce cross-contamination risk in active cleanroom environments.
Planning a Wet Process Upgrade or New Cleanroom Line?
Work directly with KOSEN SEMI process engineers to evaluate equipment configuration, cleanroom integration, chemical compatibility, automation requirements, and production targets for your semiconductor wet processing line.
Custom Wet Processing Equipment • Cleanroom Integration • Automation & Process Engineering • Installation & Commissioning Support
