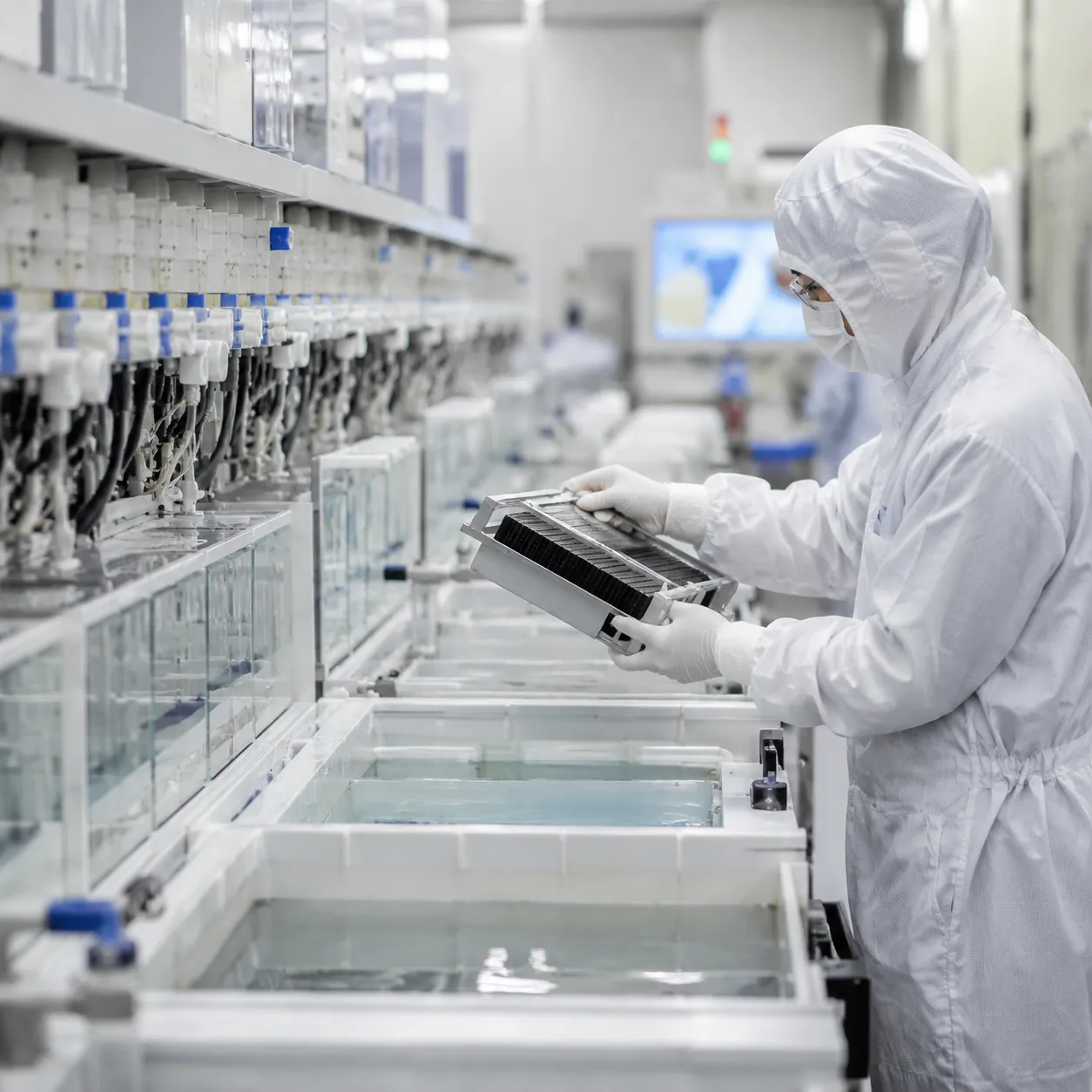

High Precision Wet Benches for Semiconductor Processing

Are substrate defects, chemical non-uniformity, and particulate contamination dragging down your die yields? We engineer our wet bench platforms to deliver total process control, zero-defect surface preparation, and uncompromising safety across your cleanroom production lines.

Semiconductor Wet Bench Capabilities

Our high-performance wet benches provide exact chemical control and particle-free handling for critical semiconductor manufacturing steps:

• • Precision Wafer Cleaning: Targeted removal of sub-micron particles utilizing megasonic agitation and SC-1/SC-2 clean chemistries.
  • Acid Chemical Etching: Highly uniform silicon wafer etching and film removal with precise temperature-controlled chemical baths.
  • Photoresist Stripping: Rapid organic resist and residual ash removal via high-temperature acid and solvent processing.
  • Surface Conditioning: Native oxide removal, surface termination, and chemical passivation.
  • Ultra-Pure Rinsing: Fast resistivity recovery with high-purity DI water systems designed to eliminate surface staining.

Substrate Handling and Cleanroom Integration

Every cleanroom wet station we manufacture supports diverse wafer formats and rigorous environmental standards:

• • Supported Substrates: Silicon (Si), Silicon Carbide (SiC), Gallium Arsenide (GaAs), Indium Phosphide (InP), Quartz, and Glass.
  • Substrate Sizes: Fully compatible with standard 100mm, 150mm, 200mm, and 300mm wafer carriers.
  • Cleanroom Rating: Seamless operational compatibility with ISO Class 3 to Class 6 facilities.
  • Airflow Architecture: Integrated vertical laminar flow (VLF) fan filter units (FFU) supply continuous HEPA/ULPA filtered air over open baths to eliminate particle cross-contamination.

Wet Bench Materials of Construction & Chemical Compatibility

Chemical Compatibility Matrix

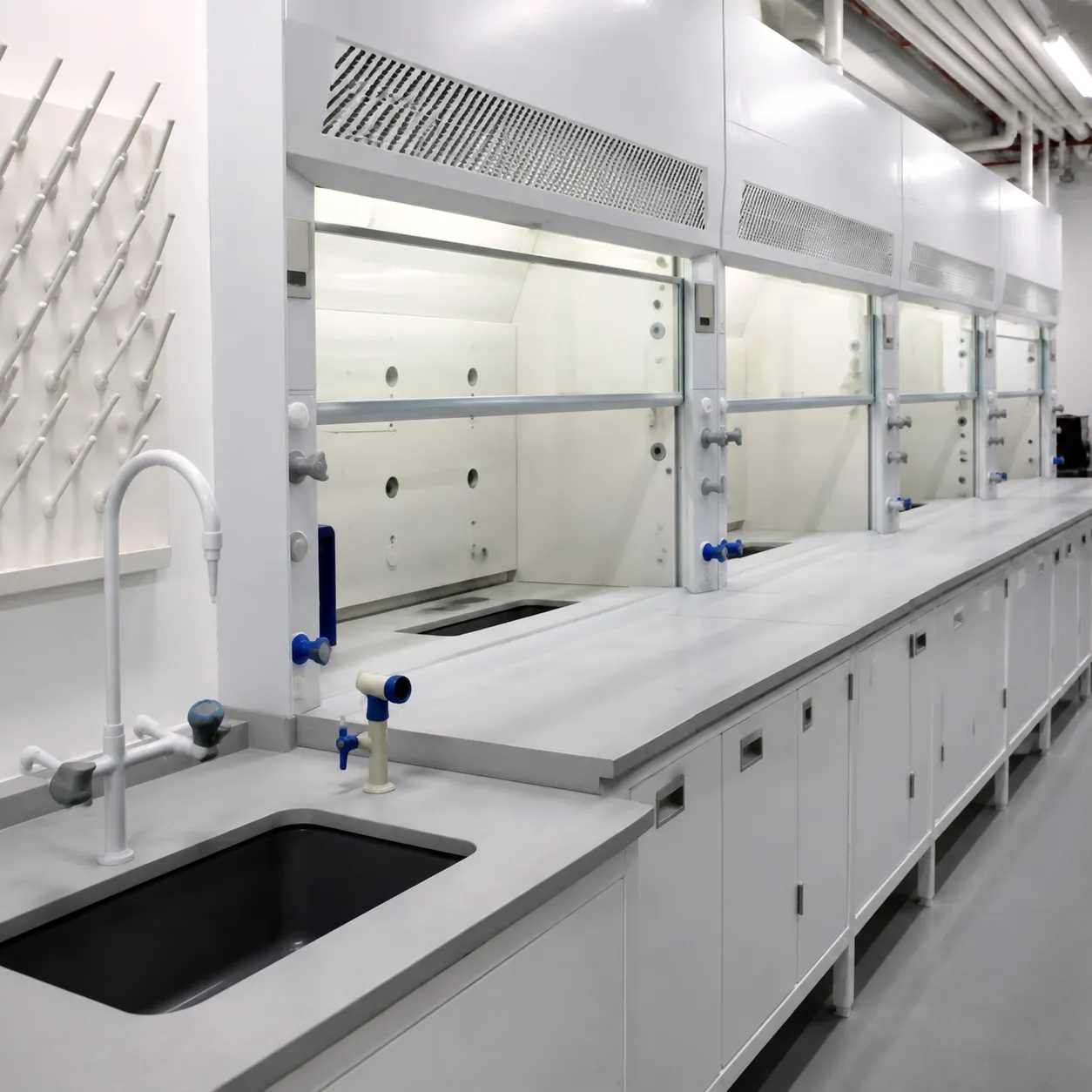

• • Polypropylene (PP / Natural PP): Provides exceptional corrosion resistance for general acid and caustic chemistry handling. Our stress-relieved polypropylene modules prevent structural warping and degradation in high-volume production environments.
  • FM4910 Flame-Retardant Plastics: Configured with PVDF, CPVC, and ECTFE (Halar®) to meet rigorous cleanroom fire protocols. These materials self-extinguish and prevent toxic smoke contamination, adhering directly to our strict compliance and safety standards.
  • Passivated 316L Stainless Steel: Features electropolished surfaces and fully grounded frames engineered specifically for solvent process modules and flammable fluid processing.
  • High-Purity Quartz & PTFE/PFA: Premium enclosures for thermal acid baths and hydrofluoric acid (HF) etching. Virgin PTFE and PFA tanks safely contain concentrated HF, while high-purity quartz vessels maintain thermal integrity during high-temperature acid processing.

For detailed structural and material recommendations tailored to your chemical process, explore our complete semiconductor wet bench design and specification guide.

Automation & Motion Control Options

We offer scalable motion control architectures across our entire wet bench lineup to match your cleanroom throughput, repeatability, and process control targets.

Platform Tier	Key Features & Motion Capabilities	Primary Applications
Manual Wet Processing Station	Ergonomic counterbalanced sashes, foot-pedal pneumatic controls, and manual dip tanks	R&D laboratories, university cleanrooms, and low-volume prototyping
Semi-Automated Recipe Station	Programmable immersion timers, motorized vertical lift assists, and pneumatic auto-tank covers	Mid-volume processing, pilot lines, and specialized etch modules

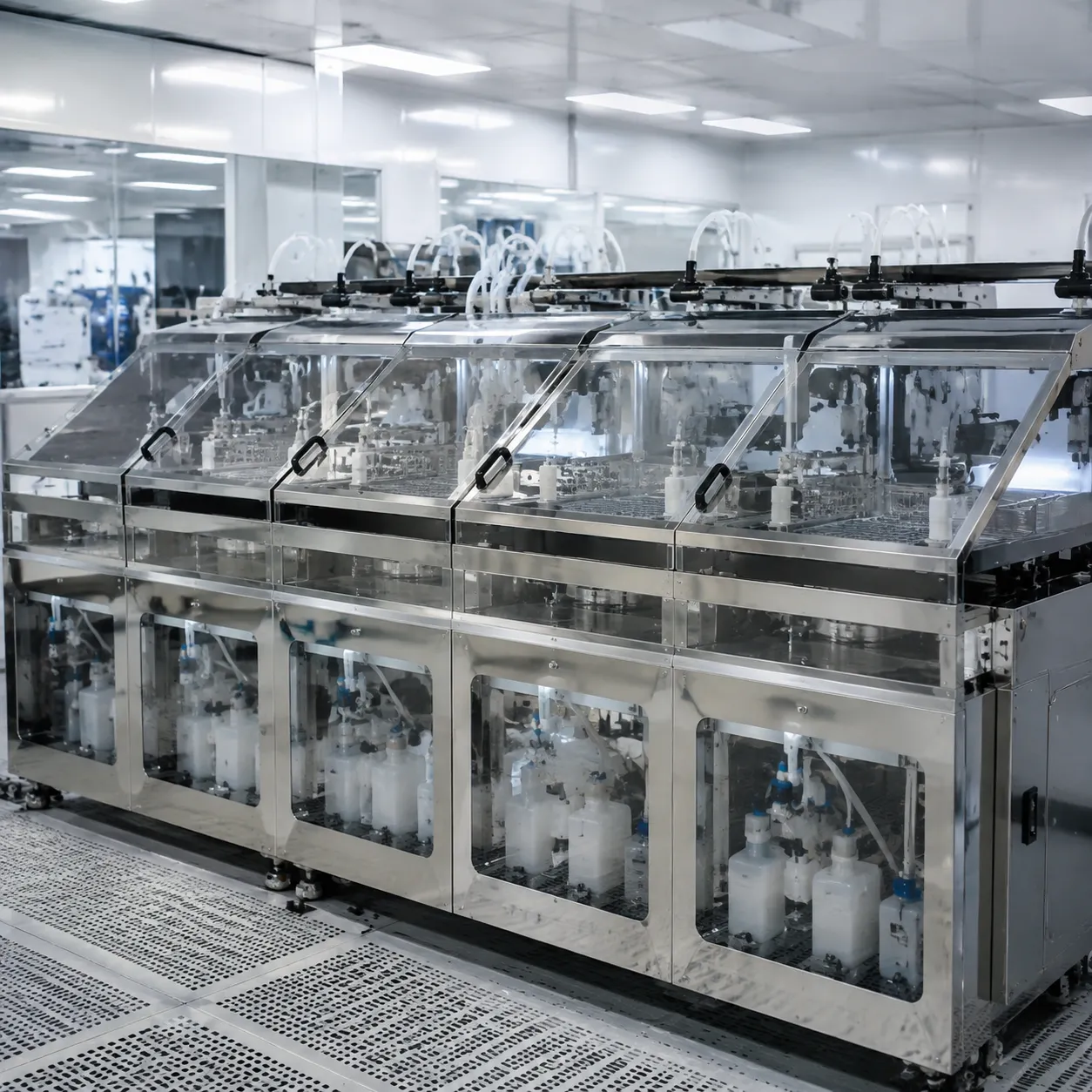

Fully Automated Linear Platform	Overhead, front, or rear linear Cartesian robots for particle-free cassette transfer and dry-to-dry processing	High-volume manufacturing (HVM) and zero-footprint cleanroom integration

Precision Substrate Handling & Robotics

Our configurable automated wet bench solutions eliminate human variability and boost yield through precise motion integration.

• • Manual Wet Bench Design: We engineer robust manual wet bench systems with counterbalanced safety sashes and hands-free foot pedals to protect operators during delicate substrate dipping routines.
  • Semi-Automated Control: Recipe controllers maintain exact chemical immersion times down to the millisecond, pairing with motorized lift assists to eliminate fluid agitation ripple during wafer entry and exit.
  • Linear Robotic Transport: Driven by advanced automation control software, our overhead and rear-mounted Cartesian robots execute multi-recipe dynamic scheduling, high-speed cassette indexing, and smooth dry-to-dry transfers without generating airborne particulates.

Integrated Chemical Modules & Rinse/Dry Systems for Wet Benches

Chemical Process Tanks

• • Recirculating Filtered Baths: Continuous inline filtration down to 0.05 µm removes particulates, while integrated fluid heaters and heat exchangers maintain strict process thermal stability within ±0.5°C.
  • Acoustic Agitation: Integrated megasonic and ultrasonic agitation systems remove sub-micron contaminants without damaging fragile, high-aspect-ratio wafer features.
  • Real-Time Metrology Monitoring: Chemical concentration sensors track reagent bath decay in real time to trigger automated dosing commands and sustain bath longevity.

High-Efficiency Rinse Modules

• • Quick Dump Rinsers (QDR): Combine bottom-fill DI water manifolds with rapid bottom-dump pneumatic valves to flush residual chemistries in seconds, preventing cross-contamination.
  • Overflow Cascade Baths: Multi-stage counter-current designs minimize ultrapure water (UPW) consumption while continuously monitoring effluent resistivity up to 18.2 MΩ·cm.
  • High-Pressure DI Spray Wands: Deck-mounted PFA spray wands provide localized high-pressure rinsing for manual touch-ups, process tanks, and wafer cassettes.

Advanced Wafer Drying Systems

• • Marangoni STG Dryers: Leverage surface tension gradient (STG) physics using IPA vapor to achieve non-contact, watermark-free drying on advanced sub-micron patterns.
  • IPA Vapor Dryers: Offer clean surface tension displacement drying for high-density batch wafer carriers. To review complete drying capabilities, consult our wafer cleaning systems guide.
  • High-Speed Spin Rinse Dryers (SRD): Dual-axis, high-RPM rotor drying configurations optimized for rapid, high-volume batch production.

Automated Chemical Delivery & Dosing (CDS)

• • Closed-Loop Replenishment: Fully automated bulk chemical delivery systems supply aggressive acid and solvent chemistries directly to active process tanks without manual operator intervention.
  • Precision Dosing Controls: Servo-driven PFA chemical pumps auto-dispense micro-doses to maintain bath chemical ratios during long production shifts.
  • Facility Integration: Modular connections pair directly with our automated chemical cleaning equipment to ensure leak-free fluid transfers and total process isolation within the cleanroom.

Operator Safety, Exhaust & Regulatory Standards for Wet Benches

Protecting technicians and maintaining cleanroom air quality are non-negotiable requirements for any high-performance wet bench. We build every semiconductor wet bench with multi-tiered containment, redundant safety interlocks, and strict adherence to global standards to eliminate operator exposure during chemical processing.

Fume Extraction & Airflow

Our rear-plenum acid exhaust hood design maintains precise, uniform capture velocity across the entire work deck while minimizing overall exhaust draw.

• • Uniform Extraction: Dual-slot plenums pull toxic, corrosive vapors directly back into the exhaust manifold, completely bypassing the operator breathe zone.
  • Optimized CFM Usage: Variable dampers balance airflow dynamically, reducing cleanroom HVAC operating costs without sacrificing containment efficiency.

Multi-Layer Safety Interlocks

We integrate real-time monitoring and fail-safe controls throughout our semiconductor wet bench systems to mitigate chemical, electrical, and thermal hazards automatically.

• • Leak Detection: Double-contained piping and catch basins equipped with optical sensors trigger immediate chemical shut-off upon fluid detection.
  • Emergency Isolation: Hardwired Emergency Off (EMO) circuits instantly isolate line power, drop pneumatic pressure, and seal pneumatic chemical valves.
  • Fire Suppression: Dedicated clean-agent or CO2 fire suppression systems pair with thermal detectors to isolate process compartments in flammable solvent modules.

Regulatory Compliance Matrix

Every wet bench we deliver meets or exceeds international cleanroom EHS guidelines:

• • SEMI S2 & SEMI S8: Fully certified for Environmental, Health, and Safety compliance alongside human factors ergonomic design.
  • NFPA 318 & UL 2360: Meets cleanroom fire protection criteria and safety standards for risk-free integration.
  • CE Marking: Complies with European safety, health, and environmental standards for global facility deployment.

Technical Specifications & Dimension Matrix

Wet Bench Dimensions & Modular Footprints

Model Configuration	Standard Width	Depth	Height (Sash Closed)	Typical Application
3-Foot Station	36 in (915 mm)	42 in (1,066 mm)	84 in (2,133 mm)	R&D labs, single-bath manual etching
4-Foot Station	48 in (1,220 mm)	42 in (1,066 mm)	84 in (2,133 mm)	Semi-automated cleaning & surface prep
6-Foot Station	72 in (1,830 mm)	48 in (1,220 mm)	90 in (2,286 mm)	Multi-bath chemical process & QDR rinse
8-Foot Station	96 in (2,438 mm)	48 in (1,220 mm)	90 in (2,286 mm)	High-throughput multi-recipe wafer cleaning
Custom Multi-Station	Tailored to fit	Custom	Custom	Fully automated linear transfer platforms

Facility Utilities & Integration Specifications

To ensure seamless facility hook-ups, our wet benches feature standardized utility connection points engineered for reliable, continuous operation. We design utility connections to align with our advanced wet process technology standards and specialized equipment integration requirements.

• • Electrical Power: 208V AC or 480V AC, 3-Phase, 50/60 Hz (dedicated circuit with emergency off interlock)
  • DI Water System: Ultra-pure DI water supply routed through high-purity PFA or PEX piping (30–50 PSI, up to 18.2 MΩ·cm resistivity)
  • Process Gases: High-purity N2 gas (60–80 PSI with 0.01 µm inline filtration) and Clean Dry Air (CDA, 80–100 PSI)
  • Process Exhaust: Dedicated rear-plenum exhaust connection (250–600 CFM depending on bench width and sash height)
  • Waste Drainage: Segregated drain lines for dedicated acid waste, solvent waste, and neutral DI rinse water recovery

Custom Wet Bench Engineering & Turnkey Integration

We deliver fully tailored wet bench configurations to meet unique substrate processing workflows, cleanroom footprints, and yield targets. Our team provides end-to-end support, leveraging advanced engineering capabilities to build and integrate specialized platforms directly into existing fab infrastructures.

Specialized Services & Testing Capabilities

• • Custom Bath Layout Engineering: We design optimized tank sequences, process enclosures, and chemical delivery lines engineered specifically for specialized wafer chemistries.
  • Modular Retrofitting & Upgrades: Expand processing capacity by adding specialized chemical modules or upgrading manual tools with high-precision custom semiconductor equipment modules to extend the operational life of existing wet benches.
  • Factory Acceptance Testing (FAT): Rigorous pre-shipment verification testing full software logic, robotic transfer accuracy, chemical dosing precision, and safety interlocks at our factory.
  • Site Acceptance Testing (SAT): On-site installation support, utility hookup verification, and functional testing inside your cleanroom environment.
  • Field Validation & Commissioning: Comprehensive operational calibration, exhaust airflow balancing, and safety interlock verification to ensure immediate, zero-contamination production readiness.

Turnkey Phase	Technical Deliverables & Validation Scope
Engineering & Design	3D CAD modeling, exhaust CFM calculation, chemical compatibility mapping
Factory Acceptance (FAT)	Dry/wet cycling, interlock safety verification, sensor calibration
Site Acceptance (SAT)	Facility hookup alignment, recipe execution, particle testing
Field Validation	EMO safety checks, flow rate tuning, complete operator training

Frequently Asked Questions

Manual, Semi-Automated vs. Fully Automated Wet Benches

We engineer wet benches across three distinct automation tiers to fit specific throughput, footprint, and repeatability requirements.

Automation Level	Substrate Transfer	Process Control	Ideal Cleanroom Application
Manual Wet Station	Hand-operated wafer cassettes	Foot-pedal timers, counterbalanced sashes	R&D labs, university cleanrooms, prototype lines
Semi-Automated Station	Motorized vertical lift assist	Programmable bath immersion times	Moderate volume production, flexible recipe testing
Fully Automated Platform	Linear robotic transfer system	Dynamic multi-recipe scheduling, dry-to-dry processing	High-volume semiconductor manufacturing, zero-particle yield targets

Why FM4910 Compliance Matters in Semiconductor Wet Stations

While standard polypropylene wet bench construction delivers excellent chemical compatibility for general acid processing, FM4910 flame-retardant plastics (PVDF, CPVC, and ECTFE) are critical for advanced cleanroom fire safety:

• • Self-Extinguishing Properties: Materials halt combustion immediately upon removal of an ignition source.
  • Zero Smoke Contamination: Prevents corrosive, particulate-heavy smoke from damaging cleanroom vertical laminar flow (VLF) systems during a thermal event.
  • Exhaust Integrity: Maintains structural integrity under heat to keep the acid exhaust hood operational during emergency shut-down sequences.

Sub-Micron Wafer Drying: Marangoni vs. IPA Vapor vs. SRD

Selecting the proper drying technology within wafer cleaning equipment directly impacts yield during post-etch and rinsing steps.

• • Marangoni STG Dryer: The premier choice for sub-micron silicon wafer cleaning (<45nm). Utilizes surface tension gradients with minimal isopropyl alcohol (IPA) to pull water cleanly off the wafer, eliminating drying marks and preventing pattern collapse on fragile, high-aspect-ratio features.
  • IPA Vapor Dryer: Effective for standard planar geometries. Uses warm IPA vapor displacement to dry wafers efficiently with moderate chemical consumption.
  • Spin Rinse Dryer (SRD): Uses high-speed centrifugal force. Highly cost-effective for legacy nodes and robust substrates, though mechanical stress risks damaging delicate sub-micron features.

SEMI S2 and SEMI S8 Cleanroom Compliance

Our cleanroom wet process equipment is built from the ground up to adhere to strict global safety and ergonomic mandates.

• • SEMI S2 Compliance: Addresses comprehensive Environmental, Health, and Safety (EHS) requirements. This includes liquid leak detection trays, integrated chemical delivery system (CDS) shut-off valves, emergency off (EMO) circuits, and dedicated exhaust ducting connected directly to facility wet scrubber systems.
  • SEMI S8 Compliance: Governs ergonomic design. Sets strict limits on sash access heights, reach distances, bath loading angles, and display placement to reduce operator fatigue and prevent repetitive motion injuries during manual cassette loading.
